ABB
1SFL547002R1400

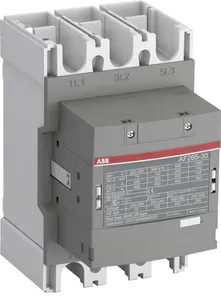

Product type: AF265-30-00-14
AF265-30-00-14 Schütz 250-500V 50-60Hz / DC
Description
Schütze AF116 bis AF750 von 55 bis 400 kW AC-3 (400 V) stehen für die kompakte Baureihe mit AC/DC-Ansteuerung und sehr weiten Spulenspannungsbereichen. Nur 4 Spulen decken Steuerspannungen von 20...500 VDC bis 24...500 VAC ab - ohne zusätzlich erforderliche Löschglieder. Dadurch sind sie weltweit und nur in geringer Varianz einsetzbar. AF116 bis AF370 gibt es auch in direkt aus SPS ansteuerbaren Versionen, ab AF400 ist ein SPS-Eingang standardmäßig vorhanden. AF-Schütze schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten. Anbaubare Zubehörteile sind bis zu 2 rechts- und linksseitig montierbare 2-polige Hilfsschalter. Alle Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiteres Zubehör wie Klemmenabdeckungen, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL547002R1400.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 3.9 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | SE |
| Dimensions (WxHxD) | 0.14x0.225x0.18 m |
| EAN code | 7320500481202 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 5 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| terminal type | Main Circuit: Bars |
| bv certificate | https://library.abb.com/d/BV_36353_A0BV |
| cb certificate | https://library.abb.com/d/SE-89316 |
| gl certificate | https://library.abb.com/d/GL_95073-14HH |
| lr certificate | https://library.abb.com/d/LR_14_70011(E1) |
| abs certificate | https://library.abb.com/d/14-LD1092198-PDA |
| ccs certificate | https://library.abb.com/d/GB14T00030 |
| cqc certificate | https://library.abb.com/d/CQC2014010304676670, https://library.abb.com/d/CQC2014010304673866 |
| cul certificate | https://library.abb.com/d/20121217-E36588 |
| dnv certificate | https://library.abb.com/d/DNV_E-14043 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| prs certificate | https://library.abb.com/d/TE_2092_880423_16 |
| ul listing card | https://library.abb.com/d/UL_E36588 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 20.4 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 20.4 V·AHolding at Max. Rated Control Circuit Voltage DC 4.7 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 550 V·APull-in at Max. Rated Control Circuit Voltage DC 650 W |
| rina certificate | https://library.abb.com/d/ELE060313XG_002 |
| rmrs certificate | https://library.abb.com/d/9AKK107045A6978 |
| rohs information | https://library.abb.com/d/2CMT2015-005439 |
| dimension diagram | https://library.abb.com/d/1SFB535001G1060 |
| e-number (norway) | 3210152 |
| e-number (sweden) | 3210152 |
| dnv gl certificate | https://library.abb.com/d/DNV_E-14043 |
| e-number (finland) | 3706476 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 5 million |
| horsepower rating nema | (200 V AC) Three Phase 75 Hp(230 V AC) Three Phase 100 Hp(460 V AC) Three Phase 200 Hp(575 V AC) Three Phase 200 Hp |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| horsepower rating ul/csa | (200 V AC) Three Phase 75 hp(208 V AC) Three Phase 75 hp(220 ... 240 V AC) Three Phase 100 hp(440 ... 480 V AC) Three Phase 200 hp(550 ... 600 V AC) Three Phase 250 hp |
| environmental information | https://library.abb.com/d/2CMT004732, https://library.abb.com/d/1SAC200043H0005 |
| general use rating ul/csa | (600 V AC) 350 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3800 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3300 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| continuous current rating nema | 270 A |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005439 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001305, https://library.abb.com/d/2020980304001068 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible 2 x 70 ... 185 mm2Rigid Al-Cable 1 x 185 ... 240 mm2Rigid Cu-Cable 2 x 70 ... 185 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 1000 V |
| short-circuit protective devices | gG Type Fuses 500 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0206 |
| rated operational power ac-3 (pe) | (415 V) 132 kW(440 V) 160 kW(500 V) 160 kW(690 V) 200 kW(1000 V) 160 kW(380 / 400 V) 132 kW(220 / 230 / 240 V) 75 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 350 A(1000 V) 55 °C 300 A(1000 V) 60 °C 300 A(1000 V) 70 °C 240 A(690 V) 40 °C 400 A(690 V) 55 °C 350 A(690 V) 70 °C 290 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 265 A(440 V) 55 °C 265 A(500 V) 55 °C 250 A(690 V) 55 °C 250 A(1000 V) 55 °C 113 A(380 / 400 V) 55 °C 265 A(220 / 230 / 240 V) 55 °C 265 |
| rated operational current dc-1 (ie) | (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A |
| rated operational current dc-3 (ie) | (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A |
| rated operational current dc-5 (ie) | (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 1x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 1 x 1 .... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 400 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2120 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 865 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2650 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A |
