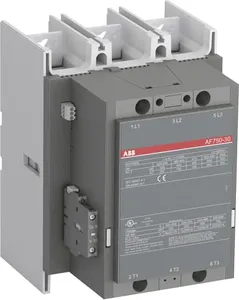

1SFL637001R7000
Product type: AF750-30-00 100-250V 50/60Hz / 100-250V
AF750-30-00-70 Schütz 100-250V 50/60Hz / DC
Description
Schütze AF116 bis AF750 von 55 bis 400 kW AC-3 (400 V) stehen für die kompakte Baureihe mit AC/DC-Ansteuerung und sehr weiten Spulenspannungsbereichen. Nur 4 Spulen decken Steuerspannungen von 20...500 VDC bis 24...500 VAC ab - ohne zusätzlich erforderliche Löschglieder. Dadurch sind sie weltweit und nur in geringer Varianz einsetzbar. AF116 bis AF370 gibt es auch in direkt aus SPS ansteuerbaren Versionen, ab AF400 ist ein SPS-Eingang standardmäßig vorhanden. AF-Schütze schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten. Anbaubare Zubehörteile sind bis zu 2 rechts- und linksseitig montierbare 2-polige Hilfsschalter. Alle Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiteres Zubehör wie Klemmenabdeckungen, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL637001R7000.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 13.6 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | SE |
| Dimensions (WxHxD) | 0.21x0.283x0.242 m |
| EAN code | 7320500381175 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 7 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| terminal type | Main Circuit: Bars |
| bv certificate | https://library.abb.com/d/BV_13409-C0BV |
| cb certificate | https://library.abb.com/d/SE-82863 |
| lr certificate | https://library.abb.com/d/16-20064 |
| abs certificate | https://library.abb.com/d/15-LD1408622-PDA |
| ccs certificate | https://library.abb.com/d/GB14T00030 |
| cqc certificate | https://library.abb.com/d/CQC2007010304256684, https://library.abb.com/d/CQC2012010304540080 |
| cul certificate | https://library.abb.com/d/UL_20111101-E36588 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| prs certificate | https://library.abb.com/d/TE_2092_880423_16 |
| ul listing card | https://library.abb.com/d/UL_E36588 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·APull-in at Max. Rated Control Circuit Voltage DC 880 V·A |
| rina certificate | https://library.abb.com/d/ELE060313XG_002 |
| rmrs certificate | https://library.abb.com/d/9AKK107045A6978 |
| rohs information | https://library.abb.com/d/2CMT2019-005796 |
| dnv gl certificate | https://library.abb.com/d/TAE00001W1 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| mechanical durability | 3 million |
| horsepower rating nema | (230 V AC) Three Phase 300 Hp(460 V AC) Three Phase 600 Hp(575 V AC) Three Phase 600 Hp |
| horsepower rating ul/csa | (200 V AC) Three Phase 250 hp(208 V AC) Three Phase 250 hp(220 ... 240 V AC) Three Phase 300 hp(440 ... 480 V AC) Three Phase 600 hp(550 ... 600 V AC) Three Phase 700 hp |
| environmental information | https://library.abb.com/d/1SAC200044H0006 |
| general use rating ul/csa | (1000 V AC) 900 A(600 V AC) 900 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2019-005796 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001301, https://library.abb.com/d/2020980304001045 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 1000 V |
| rated operational power ac-3 (pe) | (415 V) 425 kW(440 V) 450 kW(500 V) 520 kW(690 V) 600 kW(1000 V) 400 kW(380 / 400 V) 400 kW(220 / 230 / 240 V) 220 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 100...250 V60 Hz 100...250 VDC Operation 100 ... 250 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 1000 A(1000 V) 55 °C 875 A(1000 V) 70 °C 720 A(690 V) 40 °C 1050 A(690 V) 55 °C 875 A(690 V) 70 °C 720 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 750 A(440 V) 55 °C 750 A(500 V) 55 °C 750 A(690 V) 55 °C 650 A(1000 V) 55 °C 300 A(380 / 400 V) 55 °C 750 A(220 / 230 / 240 V) 55 °C 750 |
| rated operational current dc-1 (ie) | (110 V) 1-Pole, 40 °C 1050 A(110 V) 2 Poles in Series, 40 °C 1050 A(220 V) 3 Poles in Series, 40 °C 1050 A(600 V) 3 Poles in Series, 40 °C 1050 A(850 V) 3 Poles in Series, 40 °C 1050 A |
| rated operational current dc-3 (ie) | (110 V) 1-Pole, 40 °C 1050 A(110 V) 2 Poles in Series, 40 °C 1050 A(220 V) 3 Poles in Series, 40 °C 1050 A(600 V) 3 Poles in Series, 40 °C 1050 A(850 V) 3 Poles in Series, 40 °C 1050 A |
| rated operational current dc-5 (ie) | (110 V) 1-Pole, 40 °C 1050 A(110 V) 2 Poles in Series, 40 °C 1050 A(220 V) 3 Poles in Series, 40 °C 1050 A(600 V) 3 Poles in Series, 40 °C 1050 A(850 V) 3 Poles in Series, 40 °C 1050 A |
| maximum electrical switching frequency | 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A |
Read More
