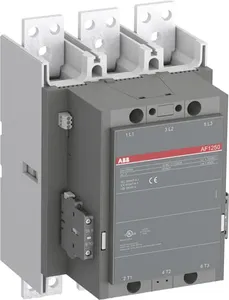

Product type: AF1250-30-22-71
AF1250-30-22-71 Schütz 250-500V 50-60Hz / DC
Description
Schütze AF1250 bis AF2650 von 1260 bis 2650 A AC-1 (400 V) stehen für die kompakte Baureihe mit AC/DC-Ansteuerung und sehr weiten Spulenspannungsbereichen. Nur 4 Spulen decken Steuerspannungen von 20...500 VDC bis 24...500 VAC ab - ohne zusätzlich erforderliche Löschglieder. Zusätzlich verfügen die Schütze über einen 24 VDC – Eingang und sind dadurch direkt aus einer SPS ansteuerbar. So sind sie weltweit und nur in geringer Varianz einsetzbar. Ihren Einsatz finden diese Schütze meist in AC-1-Leistungskreisen in der Wind- und Solartechnik. Anbaubare Zubehörteile sind bis zu 2 rechts- und linksseitig montierbare 2-polige Hilfsschalter. Die in Reihe geschalteten Hilfsöffnerkontakte zweier rechts und links montierten Hilfsschalter wirken als Mirrorkontakte nach IEC60947-5-1 Anhang L. Weiteres Zubehör wie Klemmenabdeckungen, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL647001R7122.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 14.6 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | SE |
| Dimensions (WxHxD) | 0.21x0.344x0.242 m |
| EAN code | 7320500355121 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NC Contact Closing 50 ... 70 msBetween Coil De-energization and NO Contact Opening 53 ... 73 msBetween Coil Energization and NC Contact Opening 45 ... 115 msBetween Coil Energization and NO Contact Closing 50 ... 120 ms |
| terminal type | Main Circuit: Bars |
| bv certificate | https://library.abb.com/d/BV_13409-C0BV |
| cb certificate | https://library.abb.com/d/SE-82865 |
| lr certificate | https://library.abb.com/d/16-20064 |
| abs certificate | https://library.abb.com/d/15-LD1408622-PDA |
| ccs certificate | https://library.abb.com/d/GB14T00030 |
| cqc certificate | https://library.abb.com/d/CQC2006010304213519, https://library.abb.com/d/CQC2012010304540079 |
| cul certificate | https://library.abb.com/d/UL_20130930-E73397 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| prs certificate | https://library.abb.com/d/TE_2092_880423_16 |
| ul listing card | https://library.abb.com/d/UL_E73397 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage DC 7.5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 985 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 985 V·APull-in at Max. Rated Control Circuit Voltage DC 910 V·A |
| rina certificate | https://library.abb.com/d/ELE060313XG_002 |
| rmrs certificate | https://library.abb.com/d/9AKK107045A6978 |
| rohs information | https://library.abb.com/d/2CMT2019-005796 |
| dnv gl certificate | https://library.abb.com/d/TAE00001W1 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 0.5 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| environmental information | https://library.abb.com/d/1SFC101037D0201, https://library.abb.com/d/1SAC200045H0007 |
| general use rating ul/csa | (1000 V AC) 1210 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2019-005796 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001302, https://library.abb.com/d/2020980304001044 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| connecting capacity main circuit | Bar 50 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 1000 V |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0206 |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 1260 A(1000 V) 55 °C 1040 A(1000 V) 70 °C 875 A(690 V) 40 °C 1260 A(690 V) 55 °C 1040 A(690 V) 70 °C 875 A |
| rated operational current dc-1 (ie) | (220 V) 3 Poles in Series, 40 °C 1250 A(600 V) 3 Poles in Series, 40 °C 1250 A(850 V) 3 Poles in Series, 40 °C 1250 A |
| rated operational current dc-3 (ie) | (220 V) 3 Poles in Series, 40 °C 1250 A(600 V) 3 Poles in Series, 40 °C 1250 A(850 V) 3 Poles in Series, 40 °C 1250 A |
| rated operational current dc-5 (ie) | (220 V) 3 Poles in Series, 40 °C 1250 A(600 V) 3 Poles in Series, 40 °C 1250 A(850 V) 3 Poles in Series, 40 °C 1250 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible 2x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 1050 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 7200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 8000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 5200 A |
| connecting terminals (delivered in open position) main poles | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
