ABB

1SFN010720R1011

Product type: CAL18-11

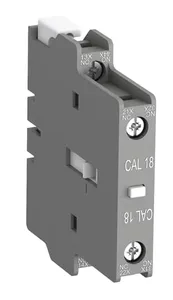

CAL18-11 Hilfskontaktblock 2-polig, 1S+1Ö

Datasheet

Description

Die CAL18 Hilfskontaktblöcke werden bei der Schaltung von Hilfsstromkreisen und Steuerstromkreisen in Standardindustrieumgebungen eingesetzt. CAL18-11 ist ein 2-poliger Block, mit 1 Schließer- + 1 Öffner- Sofortkontakt.

Low Voltage Products and Systems
Control Products
Contactors
Block Contactors Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFN010720R1011.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.04 KG / psc.
Commodity number	85369001
Country of origin	CZ
Dimensions (WxHxD)	0.065x0.074x0.017 m
EAN code	7320500256305
Product group	SC
cn8	8536 90 10
eclass	V11.0 : 27371003
etim 7	EC000041 - Auxiliary contact block
etim 8	EC000041 - Auxiliary contact block
unspsc	39121529
power loss	at Rated Operating Conditions per Pole 0.15 W
rohs status	Following EU Directive 2011/65/EU
suitable for
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate	https://library.abb.com/d/SE-85989
weee b2c / b2b	Business To Business
cqc certificate	https://library.abb.com/d/CQC2003010304088244, https://library.abb.com/d/CQC2009010304365509
cul certificate	https://library.abb.com/d/20120925-E36588
rohs information	https://library.abb.com/d/2CMT2015-005448
e-number (norway)	4116022
e-number (sweden)	3228821
tightening torque	Auxiliary Circuit 1 N·m
e-number (finland)	3709263
eplan catalog tree	Electrical engineering / Relays, contactors / Auxiliary block
degree of protection	IP20
wire stripping length	Auxiliary Circuit 9 mm
fire and smoke standards	EN 45545 (Hazard levels HL2, HL3)
recommended screw driver	Auxiliary Circuit 1 x 5.5Auxiliary Circuit Pozidriv 2
rated operational voltage	Auxiliary Circuit 24 ... 690 V
object classification code	K
suitable for product class	Block Contactors
declaration of conformity - ce	https://library.abb.com/d/2CMT2015-005448
declaration of conformity - ccc	https://library.abb.com/d/2020980304001307, https://library.abb.com/d/2020980304001060
number of auxiliary contacts nc	1
number of auxiliary contacts no	1
declaration of conformity - ukca	https://library.abb.com/d/2CMT2020-006119
data sheet, technical information	https://library.abb.com/d/1SBC100122C0202
