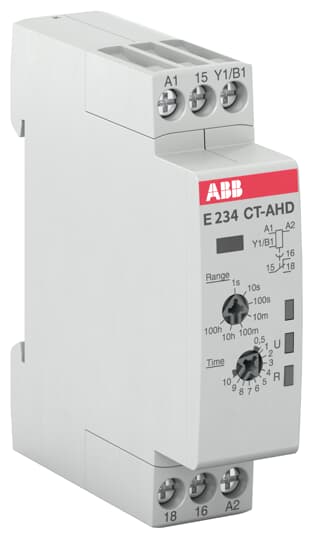

| Weight | 0.053 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | BG |
| Dimensions (WxHxD) | 89x65x20 mm |
| EAN code | 4013614350665 |
| Product group | EA |
| eclass | V11.0 : 27371605 |
| etim 4 | EC001439 - Timer relay |
| etim 5 | EC001439 - Timer relay |
| etim 6 | EC001439 - Timer relay |
| etim 7 | EC001439 - Timer relay |
| etim 8 | EC001439 - Timer relay |
| output | 1 c/o (SPDT) contact |
| unspsc | 39121519 |
| standards | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508 |
| time range | 0.05 s ... 100 h |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Screw Terminals |
| ccc certificate | https://library.abb.com/d/CCC_2019010303150608 |
| cqc certificate | https://library.abb.com/d/CQC2019010303150608 |
| eac certificate | https://library.abb.com/d/EAC_RU_C-DE.ME77.B.00568/20 |
| pollution degree | 3 |
| rmrs certificate | https://library.abb.com/d/RMRS_1740021250 |
| rohs information | https://library.abb.com/d/1SVD981010-00 |
| timer relay type | OFF-Delay |
| culus certificate | https://library.abb.com/d/cULus_20031209-E140448 |
| e-number (sweden) | 4033011 |
| mounting position | 1 ... 6 |
| tightening torque | 0.5 ... 0.8 N·m |
| e-number (finland) | 2712641 |
| connecting capacity | Flexible 1x 0.5 ... 2.5 mm2Flexible 2x 0.5 ... 1.5 mm2Rigid 1x 0.5 ... 4 mm2Rigid 2x 0.5 ... 1.5 mm2 |
| rated frequency (f) | DC50 / 60 Hz |
| degree of protection | Housing IP50Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| contact rating ul/csa | C300 |
| wire stripping length | 7 mm |
| ambient air temperature | Operation -20 ... +60 °CStorage -40 ... +85 °C |
| recommended screw driver | Pozidriv 10.8 x 4 |
| tightening torque ul/csa | 4.43 ... 7.08 in·lb |
| connecting capacity ul/csa | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG |
| object classification code | K |
| rated insulation voltage (ui) | Input Circuit / Output Circuit 300 V |
| declaration of conformity - ce | https://library.abb.com/d/1SVD981010-00 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980303000209 |
| declaration of conformity - ukca | https://library.abb.com/d/1SVD981010-10 |
| maximum operating voltage ul/csa | Output Circuit 300 V AC |
| short-circuit protective devices | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/2CDC110004C0210_01 |
| rated control supply voltage (us) | 24 ... 240 V AC24 ... 48 V DC |
| rated operational current ac-12 (ie) | (230 V) 6 A |
| rated operational current ac-15 (ie) | (230 V) 3 A |
| rated operational current dc-12 (ie) | (24 V) 6 A |
| rated operational current dc-13 (ie) | (24 V) 2 A |
| maximum operating altitude permissible | Without Derating 2000 m |
| rated impulse withstand voltage (uimp) | Input Circuit 4 kV |
