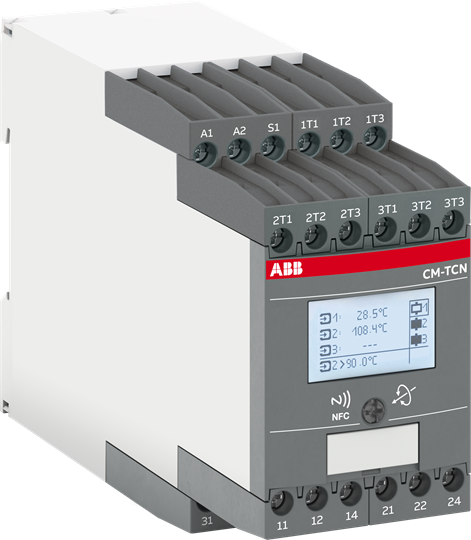

| Weight | 0.265 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.045x0.0856x0.1037 m |
| EAN code | 4013614552519 |
| Product group | EA |
| eclass | V11.0 : 27371810 |
| etim 5 | EC001446 - Temperature monitoring relay |
| etim 6 | EC001446 - Temperature monitoring relay |
| etim 7 | EC001446 - Temperature monitoring relay |
| etim 8 | EC001446 - Temperature monitoring relay |
| output | 3 x 1 c/o contacts, configurable |
| unspsc | 39122331 |
| function | Overtemperature monitoringUndertemperature monitoringOver- and undertemperature monitoring |
| rohs status | Following EU Directive 2011/65/EU |
| sensor type | PT100; PT1000; PTC; NTC; bimetal switch |
| terminal type | Screw Terminals |
| ul certificate | https://library.abb.com/d/UL-US-L140448-11-22600202-1 |
| cqc certificate | https://library.abb.com/d/CQC2018010303056014 |
| csa certificate | https://library.abb.com/d/UL-CA-L140448-41-22600202-1 |
| measuring range | -200 ... +850 °C |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/1SVD981067-00 |
| mounting position | 1 ... 6 |
| tightening torque | 0.6 ... 0.8 N·m |
| connecting capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm2Flexible with Ferrule 2x 0.5 ... 1.5 mm2Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm2Flexible 1x 0.5 ... 2.5 mm2Flexible 2x 0.5 ... 1.5 mm2Rigid 1x 0.5 ... 4 mm2Rigid 2x 0.5 ... 2.5 mm2 |
| rated frequency (f) | Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC Hz |
| degree of protection | Housing IP50Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| contact rating ul/csa | B300 |
| electrical durability | AC-12 100000 cycle |
| mechanical durability | 30000000 cycle |
| wire stripping length | 8 mm |
| ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +85 °C |
| recommended screw driver | Pozidriv 14.50.8 x 4 |
| tightening torque ul/csa | 7.08 in·lb |
| environmental information | https://library.abb.com/d/1SAC200220H0001 |
| connecting capacity ul/csa | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG |
| minimum switching capacity | 12 V100 mA |
| object classification code | B |
| rated insulation voltage (ui) | Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SVD981067-00 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980303000208 |
| declaration of conformity - ukca | https://library.abb.com/d/1SVD981067-10 |
| maximum operating voltage ul/csa | Output Circuit 300 V AC |
| short-circuit protective devices | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/2CDC112286C0201 |
| rated control supply voltage (us) | 24 ... 240 V AC/DC |
| rated operational current ac-12 (ie) | (230 V) 4 A |
| rated operational current ac-15 (ie) | (230 V) 3 A |
| rated operational current dc-12 (ie) | (24 V) 4 A |
| rated operational current dc-13 (ie) | (24 V) 2 A |
| maximum operating altitude permissible | Without Derating 2000 m |
| rated impulse withstand voltage (uimp) | Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 6 kV |
