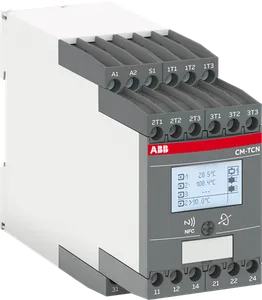

| Weight | 0.265 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.045x0.0856x0.1037 m |
| EAN code | 4013614552625 |
| Product group | EA |
| eclass | V11.0 : 27371810 |
| etim 5 | EC001446 - Temperature monitoring relay |
| etim 6 | EC001446 - Temperature monitoring relay |
| etim 7 | EC001446 - Temperature monitoring relay |
| etim 8 | EC001446 - Temperature monitoring relay |
| output | 3 x 1 c/o contacts, configurable |
| unspsc | 39122331 |
| function | Overtemperature monitoringUndertemperature monitoringOver- and undertemperature monitoring |
| rohs status | Following EU Directive 2011/65/EU |
| sensor type | PT100; PT1000; PTC; NTC; bimetal switch |
| terminal type | Screwless Terminals |
| ul certificate | https://library.abb.com/d/UL-US-L140448-11-22600202-1 |
| cqc certificate | https://library.abb.com/d/CQC2018010303056014 |
| csa certificate | https://library.abb.com/d/UL-CA-L140448-41-22600202-1 |
| measuring range | -200 ... +850 °C |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/1SVD981067-00 |
| mounting position | 1 ... 6 |
| connecting capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm2Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm2Flexible 2x 0.5 ... 1.5 mm2Rigid 2x 0.5 ... 1.5 mm2 |
| rated frequency (f) | Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC Hz |
| degree of protection | Housing IP50Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| contact rating ul/csa | B300 |
| electrical durability | AC-12 100000 cycle |
| mechanical durability | 30000000 cycle |
| wire stripping length | 8 mm |
| ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +85 °C |
| environmental information | https://library.abb.com/d/1SAC200220H0001 |
| connecting capacity ul/csa | Flexible 2x 18-16 AWGRigid 2x 20-16 AWG |
| minimum switching capacity | 12 V100 mA |
| object classification code | B |
| rated insulation voltage (ui) | Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SVD981067-00 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980303000208 |
| declaration of conformity - ukca | https://library.abb.com/d/1SVD981067-10 |
| maximum operating voltage ul/csa | Output Circuit 300 V AC |
| short-circuit protective devices | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/2CDC112286C0201 |
| rated control supply voltage (us) | 24 ... 240 V AC/DC |
| rated operational current ac-12 (ie) | (230 V) 4 A |
| rated operational current ac-15 (ie) | (230 V) 3 A |
| rated operational current dc-12 (ie) | (24 V) 4 A |
| rated operational current dc-13 (ie) | (24 V) 2 A |
| maximum operating altitude permissible | Without Derating 2000 m |
| rated impulse withstand voltage (uimp) | Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 6 kV |
