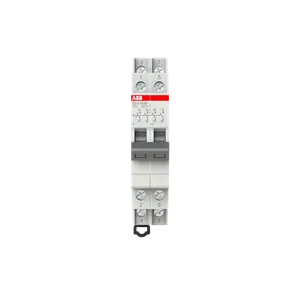

| Weight | 0.09 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | CH |
| Dimensions (WxHxD) | 0.018x0.085x0.068 m |
| EAN code | 7612270938605 |
| Product group | AR |
| cn8 | 85365053 |
| eclass | V11.0 : 27142301 |
| etim 7 | EC001545 - Main switch for distribution board |
| etim 8 | EC001545 - Main switch for distribution board |
| remarks | Sealable in the On and Off positions |
| standards | EN60669-1EN60669-2-4IEC/EN60947-3IEC60068-2-2IEC60068-2-1IEC60068-2-30VDE0632-1VDE0632-2-4UL508 |
| power loss | 1.64 W |
| cover color | Grey |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| switch type | Double Interrupting Contacts |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cb certificate | https://library.abb.com/d/9AKK108466A3838 |
| weee b2c / b2b | Business To Consumer |
| ccc certificate | https://library.abb.com/d/9AKK108466A3834 |
| eac certificate | https://library.abb.com/d/9AKK107991A4779 |
| number of poles | 4 |
| vde certificate | https://library.abb.com/d/9AKK108466A3836 |
| options provided | 4 NO |
| rohs information | https://library.abb.com/d/2CCC413008D0206 |
| e-number (sweden) | 2102791 |
| tightening torque | 1.2-1.5 N·m |
| e-number (finland) | 3602403 |
| eplan catalog tree | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| input voltage type | AC |
| product net length | 68 mm |
| rated current (in) | 16 A |
| rated voltage (ur) | Minimum 400 V |
| built-in depth (t2) | 68 mm |
| connecting capacity | Solid 1x1...6 mm2Solid 2x2.5 mm2Flexible 1x0.75...2x2.5 mm2 |
| rated frequency (f) | 50/60 Hz |
| degree of protection | IP20 |
| utilization category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) |
| control element color | Grey |
| material of conductor | Copper |
| number of contacts co | 0 |
| number of contacts nc | 0 |
| number of contacts no | 4 |
| e-number (switzerland) | 437170438 |
| ambient air temperature | Operation -25...+55 °CStorage -40...+70 °C |
| environmental information | https://library.abb.com/d/2CCC441003C0201 |
| eplan function definition | Switch / pushbutton / Quadruple switch / pushbutton, 8 connection points / Switch, quadruple NO contact 1_2_3_4_5_6_7_8 |
| rated operational voltage | acc. to EN 250/400 V ACacc. To UL 508 240 V AC |
| minimum switching capacity | 24 V AC25 mA |
| number of main contacts nc | 0 |
| number of main contacts no | 4 |
| object classification code | S |
| contact position indication | ON / OFF |
| declaration of conformity - ce | https://library.abb.com/d/2CCC441013D0201 |
| data sheet, technical information | https://library.abb.com/d/2CCC441003C0101 |
| short-circuit current rating (sccr) | 3 kA |
| width in number of modular spacings | 1 |
| rated operational current ac-22a (ie) | (400 V) 16 A |
| rated operational current dc-22a (ie) | (50 V DC) 16 A(200 V DC) 1 A |
| number of auxiliary contacts co (spdt) | 0 |
| rated impulse withstand voltage (uimp) | 6 kV |
| rated service short-circuit breaking capacity (ics) | 3 kA |
