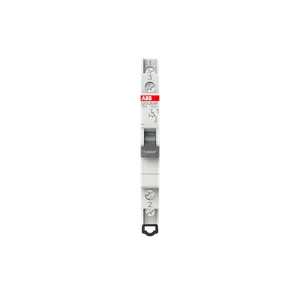

ABB

2CCA703041R0001

Product type: E213-25-001

Change over Switch, 25 A, acc. to EN 250 V AC, 0NO, 0NC, 1CO, El. Color: Grey, MW: 0.5

Datasheet

RoHS Compliant

Description

Change over switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1 E213-25-001

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Control Switches, Pushbuttons and Indicator Lights
Switches, Pushbuttons and Indicator Lights, E210

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCA703041R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.044 KG / psc.
Commodity number	85365080
Country of origin	CH
Dimensions (WxHxD)	0.009x0.085x0.068 m
EAN code	7612270938711
Product group	AR
cn8	85365053
eclass	V11.0 : 27142301
etim 7	EC001545 - Main switch for distribution board
etim 8	EC001545 - Main switch for distribution board
remarks	Sealable in the On and Off positions
standards	EN60669-1VDE0632-1IEC60068-2-2IEC60068-2-1IEC60068-2-38UL508
power loss	0.4 W
cover color	Grey
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
switch type	Double Interrupting Contacts
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate	https://library.abb.com/d/9AKK108466A3845
weee b2c / b2b	Business To Consumer
ccc certificate	https://library.abb.com/d/9AKK108466A3918
eac certificate	https://library.abb.com/d/9AKK107991A4779
number of poles	1
vde certificate	https://library.abb.com/d/9AKK107991A9822
options provided	1 CO
rohs information	https://library.abb.com/d/2CCC413008D0206
tightening torque	1.2-1.5 N·m
e-number (finland)	3602428
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
input voltage type	AC
product net length	93 mm
rated current (in)	25 A
rated voltage (ur)	Minimum 250 V
built-in depth (t2)	68 mm
connecting capacity	Solid 1x1...6 mm2Solid 2x2.5 mm2Flexible 1x0.75...2x2.5 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP20
control element color	Grey
material of conductor	Copper
number of contacts co	1
number of contacts nc	0
number of contacts no	0
e-number (switzerland)	437263138
ambient air temperature	Operation -25...+55 °CStorage -40...+70 °C
environmental information	https://library.abb.com/d/2CCC441003C0201
rated operational voltage	acc. to EN 250 V ACacc. To UL 508 240 V AC
number of main contacts nc	0
number of main contacts no	0
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/2CCC441014D0201
data sheet, technical information	https://library.abb.com/d/2CCC441003C0101
width in number of modular spacings	0.5
number of auxiliary contacts co (spdt)	1
rated impulse withstand voltage (uimp)	6 kV
