ABB

2CCA703902R0001

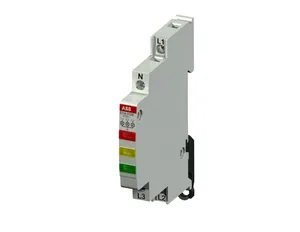

Product type: E219-3CDE

Indicator Light, 16 A, 415 / 230 V AC, 3LED, Red / Yellow / Green, MW: 0.5

Datasheet

RoHS Compliant

Description

multi indicator light with 3 red, yellow, green LEDs Voltage range = 415-230 VACPDC Module width 0,5 E219-3CDE

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Control Switches, Pushbuttons and Indicator Lights
Switches, Pushbuttons and Indicator Lights, E210

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCA703902R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.047 KG / psc.
Commodity number	85369095
Country of origin	CH
Dimensions (WxHxD)	0.009x0.085x0.068 m
EAN code	7612271413323
Product group	AR
cn8	85365053
color	Red, yellow, green
eclass	V11.0 : 27142324
etim 7	EC001657 - Indicator light for distribution board
etim 8	EC001657 - Indicator light for distribution board
remarks	Sealable in the On and Off positions
standards	EN60068-2-1EN60068-2-2EN60068-2-30DIN EN 62094-1UL508
lamp color	Red / Yellow / Green
power loss	0.47-1 W
power watt	1.2 W
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
switch type	Double Interrupting Contacts
service life	LED Indicator 50000 hour
voltage range	230 ... 415 V AC
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate	https://library.abb.com/d/9AKK108466A3847
number of leds	2
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107991A4779
vde certificate	https://library.abb.com/d/9AKK108466A3837
rohs information	https://library.abb.com/d/2CCC413008D0206
tightening torque	1.2-1.5 N·m
e-number (finland)	2312367
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
product net length	93 mm
rated current (in)	16 A
rated voltage (ur)	230 V
built-in depth (t2)	59 mm
connecting capacity	Solid 1x1...6 mm2Solid 2x2.5 mm2Flexible 1x0.75...2x2.5 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP20
material of conductor	Copper
e-number (switzerland)	472551838
ambient air temperature	Operation -25...+55 °CStorage -40...+70 °C
auxiliary voltage ac/dc	LED Indicator 230...415 V AC
environmental information	https://library.abb.com/d/2CCC441002C0201
rated operational voltage	415 / 230 V AC
object classification code	P
rated insulation voltage (ui)	250 V
declaration of conformity - ce	https://library.abb.com/d/2CCC441015D0201
data sheet, technical information	https://library.abb.com/d/2CCC441003C0101
short-circuit current rating (sccr)	3 kA
width in number of modular spacings	0.5
rated impulse withstand voltage (uimp)	4 kV
