Product type: E292-16-001

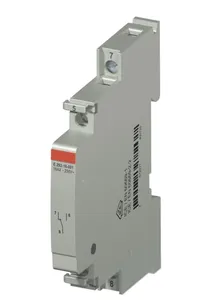

Hauptkontaktmodul 1 Wechsel, 16 A, 250 V AC, 9 mm

Datasheet

Description

Das Hauptkontaktmodul E292 in 9mm Breite ist anbaubar an den Standard Stromstoßschalter. Bei Bedarf kann die Anzahl der vorhandenen Hauptkontakte im Stromstoßschalter um einen Öffner und einen Schließerkontakt erweitert werden. Das Hauptkontaktmodul gibt es in der 16A Ausführung (z.B. bei Lichtsträngen, die auf 3 Phasen verteilt werden). Bei den 32A Stromstoßschaltern ist eine Erweiterung der Hauptkontakte nicht möglich.
