ABB

2CCA704307R0001

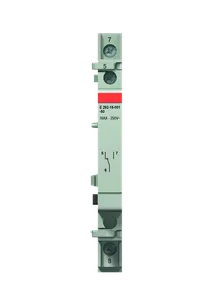

Product type: E292-16-001-60

Hauptkontaktmodul 1 Wechsel, 16 A, 250 V AC, 60 Hz, 9 mm

Datasheet

Description

Das Hauptkontaktmodul E292 in 9mm Breite ist anbaubar an den Standard Stromstoßschalter. Bei Bedarf kann die Anzahl der vorhandenen Hauptkontakte im Stromstoßschalter um einen Öffner und einen Schließerkontakt erweitert werden. Das Hauptkontaktmodul gibt es in der 16A Ausführung (z.B. bei Lichtsträngen, die auf 3 Phasen verteilt werden). Bei den 32A Stromstoßschaltern ist eine Erweiterung der Hauptkontakte nicht möglich.

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Latching Relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCA704307R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.045 KG / psc.
Commodity number	85365080
Country of origin	CH
Dimensions (WxHxD)	0.009x0.085x0.058 m
EAN code	7612271503000
Product group	AR
cn8	85364930
color	Grey
eclass	V11.0 : 27142306
etim 7	EC000188 - Latching relay
etim 8	EC000188 - Latching relay
standards	IEC 60669-1IEC 60669-2-2
power loss	0.32 W
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2011/65/EU
contact type	Change-Over (CO)
frequency (f)	Control Voltage 1 60 ... 60 Hz
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
rina certificate	https://library.abb.com/d/9AKK107492A6315
rohs information	https://library.abb.com/d/2CCC413008D0204
dimension diagram	https://library.abb.com/d/9AKK107992A6182
maximum lamp load	Fluorescent 1800 V·AIncandescent 3000 W
tightening torque	1.2 - 1.5 N·m
rated current (in)	16 A
rated voltage (ur)	250 V AC
rated frequency (f)	60 Hz
number of contacts nc	0
number of contacts no	2
ambient air temperature	Operation -25...+55 °CStorage -40...+70 °C
maximum control current dc	8 A
number of main contacts nc	0
number of main contacts no	2
object classification code	K
declaration of conformity - ce	https://library.abb.com/d/2CCC005102D0201
data sheet, technical information	https://library.abb.com/d/2CCC441020C0201
