ABB

2CCA704321R0001

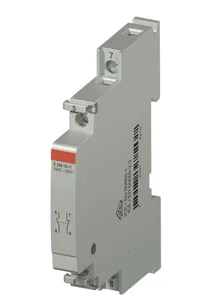

Product type: E298-16-11

Hauptkontaktmodul 1 Öffner + 1 Schließer, 16 A, 250 V AC, 9 mm

Datasheet

Description

Das E298 ist ein anschnappbares Modul (9mm) mit integrierten Hauptkontakten. Da das Hauptmodul E297 mit maximal zwei Hauptkontakten bestückt ist, kann mit dem Hauptkontaktmodul die Anzahl der Hauptkontakte um einen Öffner und einen Schließerkontakt erhöht werden (z.B. bei Lichtstränge die auf 3-Phasen verteilt sind).

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Installation Relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCA704321R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.045 KG / psc.
Commodity number	85369010
Country of origin	CH
Dimensions (WxHxD)	0.009x0.085x0.058 m
EAN code	7612270939954
Product group	AR
cn8	85362020
color	Grey
eclass	V11.0 : 27142309
etim 7	EC001652 - Installation relay
etim 8	EC001652 - Installation relay
function	Mechanical
standards	EN 60669-1EN 60669-2-2
power loss	0.32 W
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage	250...250 V
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107992A1778
vde certificate	https://library.abb.com/d/VDE_E297_40041228
rohs information	https://library.abb.com/d/2CCC413008D0206
dimension diagram	https://library.abb.com/d/9AKK107992A6182
tightening torque	1.2 - 1.5 N·m
product net length	58 mm
rated current (in)	16 A
rated voltage (ur)	250 V AC
built-in depth (t2)	62 mm
connecting capacity	Solid 1 x 1 ... 10 mm2Flexible 2 x 2.5 mm2Flexible with Cable End 1 x 0.75 ... 6 mm2Flexible with Cable Lug 1 x 0.75 ... 6 mm2
rated frequency (f)	50 .. 60 Hz
number of contacts co	0
number of contacts nc	0
number of contacts no	2
e-number (switzerland)	505990202
ambient air temperature	Operation -25...+55 °CStorage -40...+70 °C
environmental information	https://library.abb.com/d/2CCC441012D0202
rated operational voltage	250 V AC
maximum control current dc	5 A
minimum switching capacity	24 V10 mA
number of main contacts nc	1
number of main contacts no	1
object classification code	K
declaration of conformity - ce	https://library.abb.com/d/2CCC005103D0201
number of auxiliary contacts nc	1
number of auxiliary contacts no	1
data sheet, technical information	https://library.abb.com/d/2CCC441020C0201
rated control circuit voltage (uc)	11 V DC
width in number of modular spacings	0.5
