ABB

2CCE160301R0131

Name: 2CCE160301R0131
Brand: ABB
Availability: PreOrder

Product type: E463/3SL

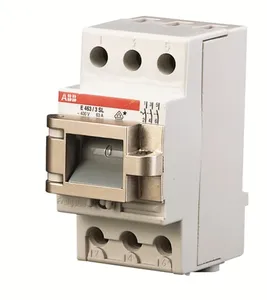

E463/3SL On-off switch

RoHS Compliant

Description

ON-off switsch E463/3SL in grey with 63 A and 3-poles 250/400 VACDCPDC according to DIN EN 60669-1, VDE 0632 Part 1 E463/3SL

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCE160301R0131.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.207 KG / psc.
Commodity number	85365080
Country of origin	CH
Dimensions (WxHxD)	0.044x0.085x0.07 m
EAN code	7612270932535
Product group	AR
cn8	85365053
eclass	V11.0 : 27142301
etim 7	EC001545 - Main switch for distribution board
etim 8	EC001545 - Main switch for distribution board
standards	EN60669-1
power loss	5.4 W
cover color	Grey
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
switch type	Off
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	3
rohs information	https://library.abb.com/d/2CCC413008D0206
input voltage type	AC
product net length	68 mm
rated current (in)	63 A
rated voltage (ur)	Minimum 400 V
built-in depth (t2)	70 mm
degree of protection	IP20
accessories available	No
number of contacts co	0
number of contacts nc	0
number of contacts no	3
environmental information	https://library.abb.com/d/2CCC441003C0201
rated operational voltage	230/400 V
object classification code	Q
declaration of conformity - ce	https://library.abb.com/d/2CCY442101D0601
data sheet, technical information	https://library.abb.com/d/2CCC441003C0101
width in number of modular spacings	2.5
rated conditional short-circuit current (inc)	10 kA
rated service short-circuit breaking capacity (ics)	10 kA
