Product type: S804U-PVSP5

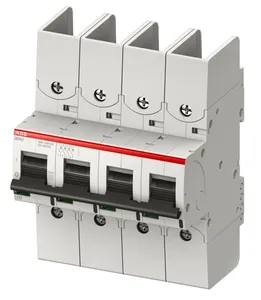

S804U-PVSP5 High Performance MCB

Datasheet

RoHS Compliant

Description

High perform. miniature circuit breaker 4-pole S800 tested acc. to UL489B 1500V DC 5A S804U-PVSP5

Low Voltage Products and Systems
Modular DIN Rail Products
High Performance Circuit Breakers HPCBs
High Performance Circuit Breakers HPCBs - S800

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCF019592R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.98 KG / psc.
Commodity number	85362010
Country of origin	CH
Dimensions (WxHxD)	0.108x0.142x0.083 m
EAN code	7612271468866
Product group	AF
cn8	85362020
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
standards	UL 489B
power loss	6 Wat Rated Operating Conditions per Pole 1.5 W
rohs status	Following EU Directive 2011/65/EU
release type	PVS
frequency (f)	0...0 Hz
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	4
pollution degree	3
rohs information	https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC413050D0201
input voltage type	DC
product net length	82.5 mm
rated current (in)	5 A
rated voltage (ur)	acc. to UL489B 1500 V DC
ambient temperature	-25...60 °C
built-in depth (t2)	92 mm
connecting capacity	Flexible 0...50 mm2Rigid 0...70 mm2
rated frequency (f)	0 ... 0 Hz
degree of protection	IP20
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25...60 °C
tripping characteristic	B
environmental information	https://library.abb.com/d/2CCY413207D0203
number of protected poles	4
rated operational voltage	1500 V DC
object classification code	F
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1500 V DC
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
rated operational current (ie)	5 A
data sheet, technical information	https://library.abb.com/d/2CCC413003C0208
interrupting rating acc. to ul489	(1500 V DC) 5 kA
width in number of modular spacings	6
rated impulse withstand voltage (uimp)	8 kV
rated ultimate short-circuit breaking capacity (icu)	(230 V) 5 kA(400 V) 5 kA
