2CCF019637R0001
ABB

2CCF019637R0001

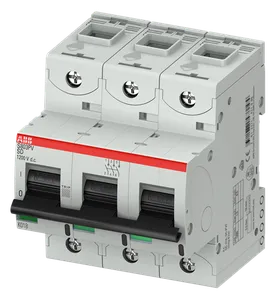

Product type: S803PV-SD32

S803PV-SD32 High Performance MCB

RoHS Compliant

Description

S803PV-SD32 3 Pole DC main switch 32A 1.5kA 1200VDC DC main switch S803PV-SD32
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Switch Disconnectors
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • High Performance Circuit Breakers HPCBs
  • High Performance Circuit Breakers HPCBs - S800
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.735 KG / psc.
Commodity number85362010
Country of originCH
Dimensions (WxHxD)0.081x0.095x0.083 m
EAN code7612271471996
Product groupAF
cn8 85362020
eclass V11.0 : 27371403
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
standards IEC/EN 60947-3
power loss 5.4 Wat Rated Operating Conditions per Pole 1.8 W
rohs status Following EU Directive 2011/65/EU
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Business
number of poles 3
rohs information https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC005117D0201
number of switches 8500
product net length 82.5 mm
rated current (in) 32 A
rated voltage (ur) acc. to IEC 60947-3 1200 V DC
connecting capacity Flexible 0...50 mm2Rigid 0...70 mm2
degree of protection Front IP20
control element color Black
environmental information https://library.abb.com/d/2CCY413207D0203
rated operational voltage 1200 V DC
object classification code F
declaration of conformity - ce https://library.abb.com/d/2CCC005117D0201
rated operational current (ie) 32 A
rated uninterrupted current (iu) 32 A
data sheet, technical information https://library.abb.com/d/2CCC413003C0208
width in number of modular spacings 4.5
rated impulse withstand voltage (uimp) 8 kV
rated short-time withstand current low voltage (icw) 1.5 kA
