2CCF544160E0630
ABB

2CCF544160E0630

Product type: IS40463

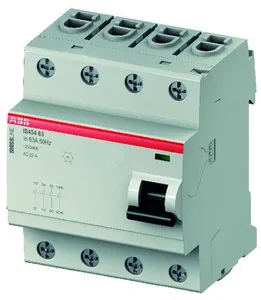

Switch Disconnector IS404 - 4P - 63 A

RoHS Compliant

Description

IS40463 Switch Disconnector 4 Poles Rated current In 63A 230/400VAC SMISSLINE TP-Touch proof system IS40463
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Plug-in Distribution Systems
  • Plug-in Distribution Systems
  • Others
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Plug-in Distribution Systems
  • Plug-in Distribution Systems
  • Residual Current Devices RCDs
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.38 KG / psc.
Commodity number85363090
Country of originIT
Dimensions (WxHxD)0.072x0.091x0.075 m
EAN code7612270104390
Product groupAF
cn8 85362020
size 4 modules
eclass V11.0 : 27371403
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
standards IEC/EN 60947-3
power loss 17.9 W
rohs status Following EU Directive 2002/95/EC August 18, 2005 and amendment
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Business
number of poles 4
rohs information https://library.abb.com/d/2CCC413008D0206_RoHS
dimension diagram https://library.abb.com/d/9AKK107492A6192
eplan catalog tree Electrical engineering / Protection devices / General
number of switches 4
product net length 72 mm
rated current (in) 63 A
degree of protection Front IP20
accessories available Yes
control element color Black
e-number (switzerland) 550510503
environmental information https://library.abb.com/d/2CCY451206D0201
rated operational voltage 230 / 400 V AC
object classification code SF
declaration of conformity - ce https://library.abb.com/d/2CCC451039D0201
rated operational current (ie) 63 A
rated uninterrupted current (iu) 63 A
data sheet, technical information https://library.abb.com/d/9AKK107492A6192
rated operational current ac-21a (ie) (400 V) 63 A
rated short-time withstand current low voltage (icw) 1.5 kA
