ABB

2CCG000572R0001

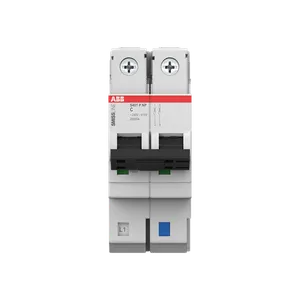

Product type: S401P-C63NP

Miniature Circuit Breaker - S400NP - 2P - 63 A - C

Datasheet

RoHS Compliant

Description

SMISSLINE TP S400P are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 40 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400P are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. S401P-C63NP

Low Voltage Products and Systems
Modular DIN Rail Products
Plug-in Distribution Systems
Plug-in Distribution Systems
Miniature Circuit Breakers MCBs

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCG000572R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.23 KG / psc.
Commodity number	85362010
Country of origin	CH
Dimensions (WxHxD)	0.036x0.085x0.091 m
EAN code	7612271509385
Product group	AF
cn8	85362020
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
power loss	11 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	2
actuator marking	I / O
pollution degree	3
rohs information	https://library.abb.com/d/9AKK107991A9803
mounting position	Any
tightening torque	2.8 N·m
eplan catalog tree	Electrical engineering / Protection devices / General
input voltage type	AC
rated current (in)	63 A
built-in depth (t2)	91 mm
connecting capacity	Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2
rated frequency (f)	50 ... 60 Hz
screw terminal type	Failsafe Bi-directional Cylinder-lift Terminal
degree of protection	IP20
electrical endurance	10000 cycle
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25 ... +60 °CStorage -40 ... +70 °C
power supply connection	Arbitrary
tripping characteristic	C
recommended screw driver	Pozidriv 2
number of protected poles	2
rated operational voltage	acc. to IEC 60947-2 415 V
object classification code	F
contact position indication	Red ON / Green OFF
mechanical endurance (nendu)	10000 cycle
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 440 V
declaration of conformity - ce	https://library.abb.com/d/9AKK107991A9803
data sheet, technical information	https://library.abb.com/d/9AKK107492A6192
reference ambient air temperature	30 °C
width in number of modular spacings	36
rated impulse withstand voltage (uimp)	4 kV
rated conditional short-circuit current (inc)	(230 V) 20 kA
resistance to vibrations acc. to iec 60068-2-6	2...13.2 Hz/1 mm13.2...100Hz/0.7 g, 5 cycles5...150 ... 5 Hz/1 g, 4 waves
