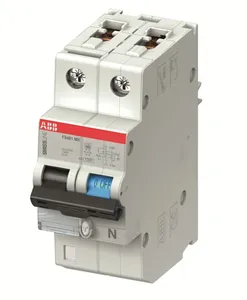

| Weight | 0.235 KG / psc. |
| Commodity number | 85362020 |
| Country of origin | CH |
| Dimensions (WxHxD) | 36x91x91 mm |
| EAN code | 7612271421618 |
| Product group | AF |
| cn8 | 85362020 |
| eclass | V11.0 : 27142207 |
| etim 7 | EC000905 - Earth leakage circuit breaker |
| etim 8 | EC000905 - Earth leakage circuit breaker |
| standards | IEC 61009-1EN 61009-1DIN EN 61009-1EN 61009-2-1DIN EN 61009-2-1 |
| power loss | 2.7 W |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| release type | C |
| actuator type | Toggle |
| frequency (f) | 50/60 Hz |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 2 |
| housing material | Insulation Group I, RAL 7035 |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/2CCC413008D0206_RoHS |
| actuator material | Insulation Group II, Black, Sealable |
| dimension diagram | https://library.abb.com/d/9AKK107492A6192 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC |
| product net length | 91 mm |
| rated current (in) | 16 A |
| rated voltage (ur) | 240 V |
| ambient temperature | -25 ... 60 °C |
| built-in depth (t2) | 91 mm |
| connecting capacity | Stranded 0.75 ... 35 mm2Flexible 0.75 ... 25 mm2 |
| rated cross-section | 1 - Solid-Core 0...35 mm24 - Multi-Wired 0...35 mm2 |
| rated frequency (f) | 50 ... 60 Hz |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| degree of protection | IP20 |
| earthing switch type | Undelayed |
| electrical endurance | 10000 cycle |
| leakage current type | A |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| maximum surge current | 0.25 kA |
| rated residual current | 100 mA |
| dielectric test voltage | 2500 V |
| tripping characteristic | C |
| operating characteristic | Instantaneous |
| type of residual current | A type |
| environmental information | https://library.abb.com/d/2CCY451206D0201 |
| number of protected poles | 1 |
| rated operational voltage | 240 V AC |
| object classification code | FB |
| contact position indication | Red ON / Green OFF |
| mechanical endurance (nendu) | 10000 cycle |
| position of neutral terminals | Right |
| rated insulation voltage (ui) | 500 V |
| declaration of conformity - ce | https://library.abb.com/d/2CCC451036D0201 |
| data sheet, technical information | https://library.abb.com/d/9AKK107492A6192 |
| reference ambient air temperature | 30 °C |
| rated short-circuit capacity (icn) | (240 V AC) 16 kA |
| width in number of modular spacings | 2 |
| rated impulse withstand voltage (uimp) | 4 kV |
| rated residual breaking capacity (iδm) | 10000 A |
| rated conditional short-circuit current (inc) | 10 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 2...13.2 Hz/1 mm13.2...100Hz/0.7 g, 5 cycles5...150 ... 5 Hz/1 g, 4 waves |
| rated service short-circuit breaking capacity (ics) | 15 kA |
| rated ultimate short-circuit breaking capacity (icu) | 25 kA |
