• 2CCS800900R0191
  • 2CCS800900R0191
  • 2CCS800900R0191
2CCS800900R0191
ABB

2CCS800900R0191

Product type: S800-SOR24

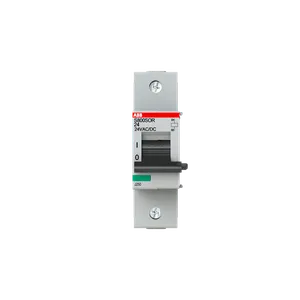

S800-SOR24 Shunt operation release

RoHS Compliant

Description

S800-SOR24 Shunt operation release 24 V AC / DC S800-SOR24
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • High Performance Circuit Breakers HPCBs
  • High Performance Circuit Breakers HPCBs Accessories
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.15 KG / psc.
Commodity number85363010
Country of originCH
Dimensions (WxHxD)0.027x0.095x0.083 m
EAN code7612271208318
Product groupAF
cn8 85389040
size 1 module
eclass V11.0 : 27370418
etim 7 EC001023 - Shunt release (for power circuit breaker)
etim 8 EC001023 - Shunt release (for power circuit breaker)
standards IEC 60947-5-1_UL489
power loss 16.6 W17 V·A
rohs status Following EU Directive 2011/65/EU
suitable for S800S, S800N, S800C, S800B, S800HV, S800U, S800PV-SP, S800PV-SD, S800PV-M-H
frequency (f) 50/60 Hz
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Business
rohs information https://library.abb.com/d/2CCC413003D0201, https://library.abb.com/d/9AKK107680A3903
dimension diagram https://library.abb.com/d/2CCC413003C0201
e-number (finland) 3212432
eplan catalog tree Electrical engineering / Protection devices / General
product net length 27 mm
rated voltage (ur) 24 V
number of contacts co 0
number of contacts nc 0
number of contacts no 1
environmental information https://library.abb.com/d/2CCY413207D0203
rated operational voltage 24 V
object classification code F
declaration of conformity - ce https://library.abb.com/d/2CCC413003D0201
data sheet, technical information https://library.abb.com/d/2CCC413003C0208
rated control supply voltage (us) (50 Hz) 24...24 V(50 Hz) 24...24 V(60 Hz) 24...24 V(60 Hz) 24...24 V(DC) 24...24 V(DC) 24...24 V
