ABB

2CCS800900R0201

Product type: S800-SOR12

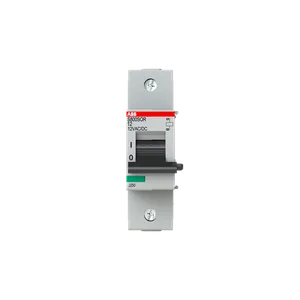

S800-SOR12 Shunt operation release

Datasheet

RoHS Compliant

Description

The S800-SOR12 is a 12V shunt opening release is for remote release of the S800 High Performance MCB using an electrical impulse. Operation of the trigger is guaranteed at a voltage between 70% and 110% of the rated voltage Un - both for AC and DC. The S800-SOR12 can be mounted by the user at the left side of S800 High Performance MCB. S800-SOR12

Low Voltage Products and Systems
Modular DIN Rail Products
High Performance Circuit Breakers HPCBs
High Performance Circuit Breakers HPCBs Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCS800900R0201.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85389099
Country of origin	CH
Dimensions (WxHxD)	0.027x0.095x0.083 m
EAN code	7612271212070
Product group	AF
cn8	85389040
eclass	V11.0 : 27370418
etim 7	EC001023 - Shunt release (for power circuit breaker)
etim 8	EC001023 - Shunt release (for power circuit breaker)
standards	IEC/EN 60947-2
power loss	15.5 W
rohs status	Following EU Directive 2011/65/EU
suitable for	S800S, S800N, S800C, S800B, S800HV, S800U, S800PV-SP, S800PV-SD, S800PV-M-H
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
actuator marking	I / O
rohs information	https://library.abb.com/d/2CCC413003D0201, https://library.abb.com/d/9AKK107680A3903
dimension diagram	https://library.abb.com/d/2CCC413003C0201
mounting position	Any
tightening torque	3.5 N·m
e-number (finland)	3212431
eplan catalog tree	Electrical engineering / Protection devices / General
product net length	82.5 mm
connecting capacity	Flexible 1 ... 25 mm2Stranded 1 ... 35 mm2
rated frequency (f)	50...60 Hz
degree of protection	acc. to IEC 60529 IP20
mounting on din rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
number of contacts co	0
number of contacts nc	0
number of contacts no	1
ambient air temperature	Operation -25 ... +60 °CStorage -40 ... +70 °C
recommended screw driver	Pozidriv 2
environmental information	https://library.abb.com/d/2CCY413207D0203
rated operational voltage	12 V AC/DC
object classification code	F
rated insulation voltage (ui)	690 V AC
declaration of conformity - ce	https://library.abb.com/d/2CCC413003D0201
data sheet, technical information	https://library.abb.com/d/2CCC413003C0208
rated control supply voltage (us)	(50 Hz) 12...12 V(50 Hz) 12...12 V(60 Hz) 12...12 V(60 Hz) 12...12 V(DC) 12...12 V(DC) 12...12 V
