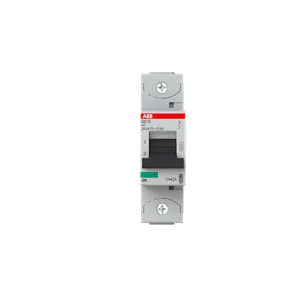

| Weight | 0.245 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | CH |
| Dimensions (WxHxD) | 0.027x0.095x0.083 m |
| EAN code | 7612271201500 |
| Product group | AF |
| cn8 | 85362020 |
| size | 1 module |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| remarks | Connection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw |
| standards | IEC/EN 60947-2, IEC/EN 60898-1, UL 1077 |
| power loss | 4.3 Wat Rated Operating Conditions per Pole 4.3 W |
| rohs status | Following EU Directive 2011/65/EU |
| release type | K |
| frequency (f) | 50 ... 60 Hz |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 1 |
| actuator marking | I / O |
| housing material | Insulation group I, RAL 7035 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC005083D0202 |
| dimension diagram | https://library.abb.com/d/2CCC413003C0201 |
| mounting position | Any |
| tightening torque | 3.5 N·m31 in·lb |
| e-number (finland) | 3212302 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC/DC |
| product net length | 27 mm |
| rated current (in) | 40 A |
| rated voltage (ur) | acc. to IEC 60947-2 400 V ACacc. to IEC 60947-2 125 V DCacc. to IEC 60898-1 230/400 V AC |
| ambient temperature | -25...60 °C |
| built-in depth (t2) | 82.5 mm |
| connecting capacity | Flexible 0...50 mm2Rigid 0...70 mm2 |
| rated frequency (f) | 50...60 Hz |
| degree of protection | IP20 |
| electrical endurance | 6000 cycle |
| mechanical endurance | 6000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | IV |
| accessories available | Yes |
| energy limiting class | 3 |
| e-number (switzerland) | 807823315 |
| ambient air temperature | Operation -25...60 °C |
| tripping characteristic | K |
| recommended screw driver | Pozidriv 2 |
| type of residual current | standard version |
| environmental information | https://library.abb.com/d/2CCY413207D0203 |
| number of protected poles | 1 |
| rated operational voltage | acc. to IEC 60947-2 400 V ACacc. to IEC 60947-2 125 V DCacc. to IEC 60898-1 230/400 V AC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 690 V |
| declaration of conformity - ce | https://library.abb.com/d/2CCC005083D0202 |
| rated operational current (ie) | 40 A |
| data sheet, technical information | https://library.abb.com/d/2CCC413003C0208 |
| reference ambient air temperature | acc. to IEC60947-2 40 °Cacc. to EN60898-1 40 °C |
| interrupting rating acc. to ul1077 | (240 V AC) 30 kA(277 V AC) 14 kA(347 V AC) 6 kA |
| width in number of modular spacings | 1.5 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated conditional short-circuit current (inc) | (230 V) 50 kA(400 V) 50 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie |
| rated service short-circuit breaking capacity (ics) | (240 / 415 V AC) 40 kA(254 / 440 V AC) 22.5 kA(400 / 690 V AC) 4 kA(125 V DC) 30 kA |
| rated ultimate short-circuit breaking capacity (icu) | (240 / 415 V AC) 50 kA(254 / 440 V AC) 30 kA(400 / 690 V AC) 6 kA(125 V DC) 30 kA(230 V) 50 kA |
