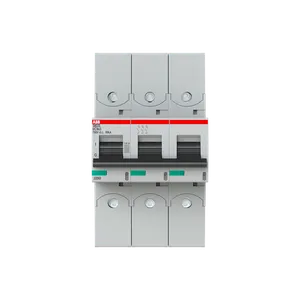

2CCS863002R1635

Product type: S803S-UCB63-R

Hochlei.Sicherungsautomat, 63A, B, 750VDC=Icu 50kA, 3P, Ringkabelschuhanschluss

Datasheet

Description

Die Hochleistungs-Sicherungsautomaten der Baureihe S800S-UC schützen Kabel und Leitungen vor Überlast und Kurzschluss. Sie haben ein Bemessungskurzschluss-ausschaltvermögen von 50kA bei 250V (einpolig), 500V (zweipolig) und 750V (drei- und vierpolig) DC. Er bietet mit seinem thermischen Auslösemechanismus gleichermaßen wirkungsvollen Schutz vor Überlast, wie mit seinem elektromechanischen Auslösemechanismus vor Kurzschluss. Der S800S-UC entspricht der Norm IEC/EN 60947-2 und ermöglicht die Anwendung für industrielle Zwecke. Zahlreiche Approbationen machen ihn fit für den weltweiten Einsatz und durch das umfangreiche Zubehörangebot wird die Verwendung noch komfortabler. Aufgrund der sehr schnellen Lichtbogenlöschung ist Ihre Installation mit dem S800S-UC bestens abgesichert.

Low Voltage Products and Systems
Modular DIN Rail Products
High Performance Circuit Breakers HPCBs

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CCS863002R1635.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.735 KG / psc.
Commodity number	85362010
Country of origin	CH
Dimensions (WxHxD)	0.081x0.142x0.083 m
EAN code	7612271208561
Product group	AF
cn8	85362020
size	3 modules
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
standards	IEC/EN 60947-2
power loss	18.6 Wat Rated Operating Conditions per Pole 6.2 W
rohs status	Following EU Directive 2011/65/EU
release type	B
frequency (f)	0...0 Hz
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	3
actuator marking	I / O
options provided	Ringlug terminal
pollution degree	2
rohs information	https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC005084D0202
dimension diagram	https://library.abb.com/d/2CCC413003C0201
input voltage type	DC
product net length	81 mm
rated current (in)	63 A
rated voltage (ur)	acc. to IEC 60947-2 750 V DC
ambient temperature	-25...60 °C
built-in depth (t2)	82.5 mm
connecting capacity	Rigid 0 ... 50 mm2Flexible 0 ... 70 mm2
rated frequency (f)	0 ... 0 Hz
degree of protection	IP20
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25...60 °C
tripping characteristic	UC-B
environmental information	https://library.abb.com/d/2CCY413207D0203
number of protected poles	3
rated operational voltage	acc. to IEC 60947-2 750 V DC
object classification code	F
contact position indication	ON / OFF / TRIP
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/2CCC005084D0202
rated operational current (ie)	63 A
data sheet, technical information	https://library.abb.com/d/2CCC413003C0208
width in number of modular spacings	4.5
rated impulse withstand voltage (uimp)	8 kV
rated conditional short-circuit current (inc)	(230 V) 50 kA(400 V) 50 kA
rated service short-circuit breaking capacity (ics)	(750 V DC) 50 kA
rated ultimate short-circuit breaking capacity (icu)	(750 V DC) 50 kA
