ABB

2CDE000012R1901

Product type: ILTS-E/H11

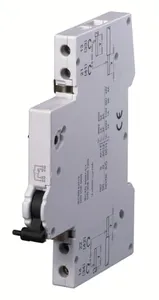

ILTS-E/H 11 Auxiliary contact

Datasheet

RoHS Compliant

Description

Auxiliary contact that enables the individual indication or signalling of the current operating state of ILTS-E D0 Fuse-switch-disconnector ILTS-E/H11

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
D0 Fuse Sockets and Fuse Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDE000012R1901.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.054 KG / psc.
Commodity number	85389099
Country of origin	DE
Dimensions (WxHxD)	0.0085x0.09x0.07 m
EAN code	4016779656719
Product group	AR
cn8	8538 90 99
eclass	V11.0 : 27142301
etim 7	EC001545 - Main switch for distribution board
etim 8	EC002498 - Accessories/spare parts for low-voltage switch technology
remarks	Twin-function terminal for simultaneous connection of two conductors (35 mm2 and 16 mm2) or conductor and busbar directly via clamp or with connector sleeve
standards	EN 60947-1EN 60947-3
rohs status	Following EU Directive 2011/65/EU
current range	2-63 A
terminal type	Double Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	3
vde certificate	https://library.abb.com/d/9AKK108466A3283
rohs information	https://library.abb.com/d/2CDK440011K0201
tightening torque	2.5 ... 3 N·m
enclosure material	Halogen-, phosphor-, silicone-, CFC-free thermoplast
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated current (in)	63 A
connecting capacity	Stranded 1.5 ... 35 mm2
utilization category	Control of solid state loads with transformer isolation (AC-13)Control of D.C. electromagnetics (DC-13)
fire and smoke standards	UL 94
environmental information	https://library.abb.com/d/2CDU400027D0201
mounted auxiliary contacts	1 NO, 1 NC
declaration of conformity - ce	https://library.abb.com/d/2CDK447006D0402
data sheet, technical information	https://library.abb.com/d/No document needed
rated operational current dc-13 (ie)	(24 V) 6 A(220 V) 1 A
