Product type: E232E-230N

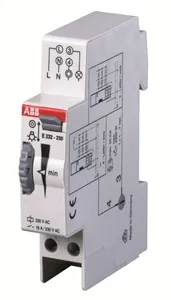

E232E-230N Staircase time switch

Datasheet

RoHS Compliant

Description

Staircase time switches with off-delay are operated by push-buttons, which are often equipped with a glow lamp. The switch levers are designed for a glow lamp current of up to 150 mA and are therefore excellently suited for installations in multistorey buildings. The E 232-230 staircase lighting timer with off-delay has an electromechanical timer relay with synchronous motor drive, which ensures a high level of operational safety in any installation position. The time range can be set in 15-second increments from one to seven minutes. Can be reswitched after 30s. The multifunctional units of the E 232E-230 Multi 10 and E 232E-8/230 Multi 10 product series have 10 functions that can be set on the front of the unit. E232E-230N

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Staircase Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDE110003R0511.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.07 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	0.0175x0.09x0.058 m
EAN code	4016779654166
Product group	AR
cn8	8536 49 00
eclass	V11.0 : 27142307
etim 7	EC000297 - Staircase lighting timer
etim 8	EC000297 - Staircase lighting timer
function	Electronic
load type	2300W Inductive load, cosj = 0.6/230 VAC
power loss	6 V·A
power watt	Filament Lamp 2300 WFluorescent Lamp Compensated 2300 V·AFluorescent Lamp Shunt Capacitive 1300 V·AFluorescent Lamp Inductive 2300 V·AHalogen Lamp 2300 W
time range	0.5 – 20 min. stepless
rohs status	Following EU Directive 2011/65/EU
switch type	Steadylight
ballast type	Electronic
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
reset function	Push Button
supply voltage	0.85 ... 1.1 V
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK108466A2730
vde certificate	https://library.abb.com/d/9AKK108466A2521
contact material	silver-tin-oxide (AgSnO2)
options provided	Without Switch-Off Warning
rohs information	https://library.abb.com/d/2CDK440004K0202
maximum lamp load	LED Power > 2W 180 WLED Power < 2W 20 W
e-number (finland)	3510147
enclosure material	Heat resistant, self-extinguishing thermoplast
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated voltage (ur)	240 V AC
ambient temperature	–25 ... 50 °C
cable cross-section	Terminal 4 mm2Terminal 13 mm2
installation manual	https://library.abb.com/d/9AKK108466A2386
rated frequency (f)	50 ... 60 Hz
control supply voltage	230 AC V
minimum switching time	0.02/0.05 second [unit of time]
switch off warning type	Flickering
rated switching capacity	16 A230 V AC
environmental information	https://library.abb.com/d/2CDU400020D0201
maximum control current dc	26 mA
connection mode and capacity	3 or 4 conductor operated automatically
declaration of conformity - ce	https://library.abb.com/d/2CDK440040D0201
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
