Product type: ISS16/1

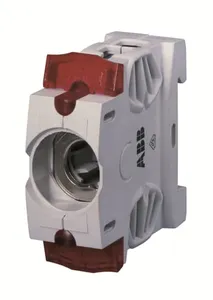

ISS 16/1 D0-fuse base

Datasheet

RoHS Compliant

Description

D0 fuse base for NEOZED fuse links D01/D02. Touch-protection according to DGUV regulation 3. Twin box terminal on both sides for connection of two different conductor cross-sections or conductors and busbars. Conductor cross-sections incoming and outing 1.5 – 35 mm2, stranded. With integrated terminal cover. A separate cover for distribution board installation is not required. ISS16/1

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
D0 Fuse Sockets and Fuse Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDE111001R1902.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.076 KG / psc.
Commodity number	85361050
Country of origin	DE
Dimensions (WxHxD)	0.027x0.068x0.055 m
EAN code	4016779655798
Product group	AR
cn8	8536 10 50
eclass	V11.0 : 27142301
etim 7	EC001545 - Main switch for distribution board
etim 8	EC001644 - D0-system fuse base
remarks	Twin box terminal on both sides for connection of two different conductor cross-sections or conductors and busbars.
clip type	Snap clip device for rail mounting acc. to EN 60715
fuse type	Neozed
standards	IEC 60269-3\|VDE 0636-3
power loss	2.5 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type	AC/DC
terminal type	Double Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	1
vde certificate	https://library.abb.com/d/9AKK108466A3282
rohs information	https://library.abb.com/d/2CDK440029D0201
dimension diagram	https://library.abb.com/d/9AKK108466A3313
tightening torque	2.5 ... 3 N·m
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated current (in)	16 A
rated voltage (ur)	400 V AC250 V DC
connecting capacity	Stranded 1.5 ... 35 mm2
utilization category	Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - occasional actuation (DC-22B)
number of protected poles	1
rated short-circuit capacity	(250 V DC) 8 kA(400 V AC) 50 kA
declaration of conformity - ce	https://library.abb.com/d/2CDK447005D0401
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
