ABB

2CDE165010R2001

Product type: E236-US2

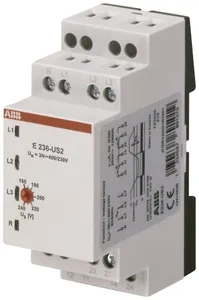

E236-US2 Undervoltage Relay

Datasheet

RoHS Compliant

Description

Three-phase undervoltage monitoring of switchgear. Devices with adjustable threshold value used for power installations in hospitals and rooms used for medical purposes outside of hospitals as well as power installations and safety supply in installations for gathering of people. E236-US2

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Protection Relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDE165010R2001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.1 KG / psc.
Commodity number	85364900
Country of origin	AT
Dimensions (WxHxD)	0.035x0.087x0.06 m
EAN code	4016779511094
Product group	AR
cn8	8536 49 00
eclass	V11.0 : 27142327
etim 7	EC001667 - Under voltage monitoring relay for distribution board
etim 8	EC001667 - Under voltage monitoring relay for distribution board
remarks	Green LED= Supply Voltage appliedYellow LED= relay status is active (when at leas one phase voltage falls below threshold, yellow LED turns off)
accuracy	Setting tolerance (US 2) ≤ 5%\|Repeat accuracy ± 1%\|Temperature effect ≤ 0.1%/°C
power loss	1.7 W
rohs status	Following EU Directive 2011/65/EU
product range	Undervoltage monitoring relay E236
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage	L-L 400 V ACL-N 230 V AC
weee b2c / b2b	Business To Consumer
rohs information	https://library.abb.com/d/2CDK440006K0201
eplan catalog tree	Electrical engineering / Relays, contactors / General
connecting capacity	max 4 mm2
delay time (τ)	Off, Typical, Switched Off via Control Input Voltage 100 ms
rated frequency (f)	48...63 Hz
overvoltage category	III
ambient air temperature	Operation -25 ... +55 °C
environmental information	https://library.abb.com/d/2CDU400021D0201
declaration of conformity - ce	https://library.abb.com/d/2CDK443003D0401
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
number of auxiliary contacts co (spdt)	2
