2CDE284789R2063
ABB

2CDE284789R2063

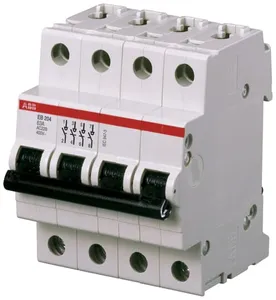

Product type: EB204-63A

EB204-63A Command Devices

Description

EB204-63A switch
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Modular DIN Rail Components MDRCs
  • Command Devices
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.44 KG / psc.
Commodity number85365080
Country of originDE
Dimensions (WxHxD)70x88x69 mm
EAN code4016779615532
Product groupAR
cn8 8536 50 80
eclass V11.0 : 27142301
etim 7 EC001545 - Main switch for distribution board
etim 8 EC001545 - Main switch for distribution board
standards IEC/EN 60947-3
cover color Grey
rohs status Following EU Directive 2011/65/EU
switch type Off
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Consumer
number of poles 4
eplan catalog tree Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated current (in) 63 A
rated voltage (ur) 415 V410 V Minimum
built-in depth (t2) 70 mm
certification agency ENIEC
degree of protection IP20
number of contacts co 0
number of contacts nc 0
number of contacts no 4
declaration of conformity - ce https://library.abb.com/d/2CDK441011D0403
data sheet, technical information https://library.abb.com/d/No document needed
width in number of modular spacings 4
rated service short-circuit breaking capacity (ics) 25 kA
