2CDG110126R0011
ABB

2CDG110126R0011

Product type: JRA/S 8.230.5.1

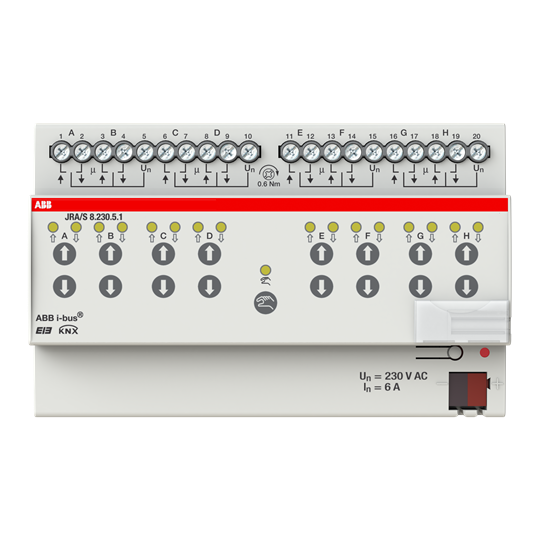

JRA/S8.230.5.1 Blind/Roller Shutter Act, Travel Det, 8-f, 230 V AC, Man Op, MDRC

Description

For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the drive are detected automatically via current detection. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.
Read More
  • Low Voltage Products and Systems
  • Home and Building Automation
  • KNX
  • Shading Control
  • Blind Actuators 230 V AC
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.41 KG / psc.
Commodity number85371091
Country of originDE
Dimensions (WxHxD)144x90x64.5 mm
EAN code4016779698450
Product groupBA
eclass V11.0 : 27143128
etim 7 EC001330 - Shutting actuator for bus system
etim 8 EC001330 - Shutting actuator for bus system
rohs status Following EU Directive 2002/95/EC August 18, 2005 and amendment
mounting type DIN-Rail
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate https://library.abb.com/d/9AKK107991A3191
rohs information https://library.abb.com/d/2CDG510124-0100
e-number (sweden) 1751250
e-number (finland) 2815401
degree of protection IP20
compatible bus systems KNX (TP)
e-number (switzerland) 405430385
declaration of conformity - ce https://library.abb.com/d/2CDK506044D2701
data sheet, technical information https://library.abb.com/d/2CDC506040D0201, https://library.abb.com/d/2CDC506062D0202
width in number of modular spacings 8
