2CDH700901R0001

Product type: S750DR-AUX

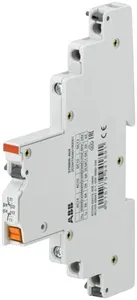

Hilfskontakt für DR Variante 2 potentialfreie Wechsler, rechts anbaubar

Datasheet

Description

Der Hilfsschalter S750DR-AUX zeigt die Kontaktposition der Haupt-Sicherungsautomaten S750DR mit Hilfe von zwei Wechslern unabhängig voneinander und potentialfrei an. Über eine Funktionsprüftaste kann ein Wechsel der Kontaktstellung simuliert werden, um die korrekte Anzeige der Kontaktposition ohne Schalten des Hauptgeräts zu prüfen. Die Wechsler erfüllen die Anforderungen der Schutztrennung. Sie sind geeignet für SELV- und PELV-Stromkreise. Der Hilfsschalter ist werkzeuglos anbaubar an dafür vorgesehene S750DR 1-4-polige-Geräte.

Low Voltage Products and Systems
Modular DIN Rail Products
Selective Main Circuit Breakers SMCBs Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDH700901R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.071 KG / psc.
Commodity number	85369095
Country of origin	BG
Dimensions (WxHxD)	0.0087x0.128x0.077 m
EAN code	4016779941891
Product group	AE
cn8	8536 90 95
eclass	V11.0 : 27143502
etim 7	EC001286 - Auxiliary device for distribution board devices
etim 8	EC001286 - Auxiliary device for distribution board devices
unspsc	39121614
standards	IEC/EN 62019IEC/EN 60947-5-1
power loss	0.24 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
suitable for	S750DR
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
accessory type	Auxiliary Contact
weee b2c / b2b	Business To Business
pollution degree	3
dimension diagram	https://library.abb.com/d/9AKK108466A5090
tightening torque	0.8 N·m
e-number (finland)	3210875
eplan catalog tree	Electrical engineering / Protection devices / General
mechanical endurance	10000 cycle
overvoltage category	IV
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 690 V
declaration of conformity - ce	https://library.abb.com/d/2CDK400611D2702
data sheet, technical information	https://library.abb.com/d/2CDC451036D0201
rated operational current ac-14 (ie)	(230 V) 6 A(400 V) 2 A
rated operational current ac-15 (ie)	(230 V) 6 A(400 V) 2 A
rated operational current dc-12 (ie)	(125 V) 1.5 A(250 V) 0.5 A
rated operational current dc-13 (ie)	(24 V) 4 A(60 V) 2 A
number of auxiliary contacts co (spdt)	2
rated impulse withstand voltage (uimp)	6 kV
resistance to vibrations acc. to iec 60068-2-6	5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
