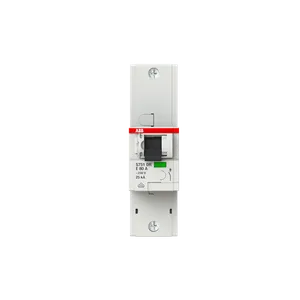

| Weight | 0.4 KG / psc. |
| Commodity number | 85369095 |
| Country of origin | BG |
| Dimensions (WxHxD) | 0.035x0.13x0.092 m |
| EAN code | 4016779879040 |
| Product group | AE |
| cn8 | 8536 90 95 |
| eclass | V11.0 : 27141903 |
| etim 7 | EC001047 - Selective main line circuit breaker |
| etim 8 | EC001047 - Selective main line circuit breaker |
| unspsc | 39121614 |
| standards | IEC/EN 60947-2 |
| power loss | at Rated Operating Conditions per Pole 10.5 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| mounting type | DIN-Rail |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 1 |
| actuator marking | I / O |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK400642D0201 |
| dimension diagram | https://library.abb.com/d/9AKK108466A4497 |
| installation size | acc. to DIN 43880 3 |
| mounting position | Any |
| tightening torque | 2.5 ... 3 N·m |
| eplan catalog tree | Electrical engineering / Protection devices / Safety switch |
| i2t characteristic | https://library.abb.com/d/9AKK108466A4490 |
| rated current (in) | 80 A |
| connecting capacity | Flexible with Ferrule 2.5 ... 50 mm2Flexible 2.5 ... 50 mm2Rigid 2.5 ... 50 mm2Stranded 2.5 ... 50 mm2 |
| rated frequency (f) | 50 / 60 Hz |
| screw terminal type | Cable Clamp |
| certification agency | ENIEC |
| degree of protection | IP20Enclosure with Cover IP40 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | IV |
| accessories available | Yes |
| suitable for isolation | Yes |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| dielectric test voltage | 50/60 Hz, 1 min: 2 kV |
| power supply connection | Arbitrary |
| tripping characteristic | E (Selective) |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Cross Recess Pozidriv 2Slotted 1 x 5.5 |
| rated operational voltage | 230 V ACacc. to IEC 60947-2 230 V AC |
| object classification code | F |
| contact position indication | Red ON / Green OFF |
| rated short-circuit capacity | (230 V AC) 25 kA |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 690 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK400633D2701 |
| data sheet, technical information | https://library.abb.com/d/9AKK107991A5989 |
| time-current characteristic curve | https://library.abb.com/d/9AKK108466A4496 |
| rated impulse withstand voltage (uimp) | 6 kVat 2000 m 8 kVat Sea Level 9.8 kV |
| resistance to shock acc. to iec 60068-2-27 | 30g / 3 shocks / 11 ms |
| resistance to vibrations acc. to iec 60068-2-6 | 2g, 20 cycles at 5 ... 150 ... 5Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 12.5 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 25 kA |
