2CDL010011R1012
ABB

2CDL010011R1012

Product type: PS 1/12N S9

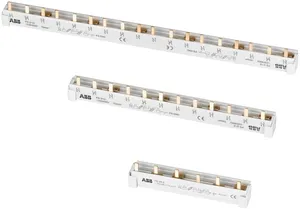

PS 1/12N S9 Busbar

RoHS Compliant

Description

PS 1/12N S9 Busbar PS 1/12N S9
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Miniature Circuit Breakers MCBs
  • Miniature Circuit Breakers MCBs Accessories
  • Busbars and Accessories (IEC Range)
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.05 KG / psc.
Commodity number85369010
Country of originDE
Dimensions (WxHxD)0.02x0.018x0.212 m
EAN code4016779667074
Product groupAW
cn8 8536 90 10
color Grey
pitch 17.5
eclass V11.0 : 27371306
etim 7 EC000215 - Phase busbar
etim 8 EC000215 - Phase busbar
unspsc 39121614
standards IEC/EN 60947-1
rohs status Following EU Directive 2011/65/EU
suitable for S200F200DDA200
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
accessory type Busbar
weee b2c / b2b Business To Business
connection type Pin
number of poles 12
housing material Light grey, RAL 7035
number of phases 1
options provided NS9
pollution degree 2
rohs information https://library.abb.com/d/2CDK440009K0203
mounting position Any
eplan catalog tree Electrical engineering / Protection devices / General
product net length 212 mm
rated cross-section 10 mm2
rated frequency (f) 50 / 60 HzDC
overvoltage category III
environmental information https://library.abb.com/d/DIN EN 60068
rated operational voltage 690 V AC/DCMaximum 690 V
object classification code W
suitable for product class S9
number of mountable devices 12
number of terminals (nterm) 12
declaration of conformity - ce https://library.abb.com/d/2CDK446006D0403
rated uninterrupted current (iu) 63 A
data sheet, technical information https://library.abb.com/d/9AKK106930A8017
width in number of modular spacings 12
rated short-time withstand current low voltage (icw) 25 kA
