ABB

2CDL211489R3725

Name: 2CDL211489R3725
Brand: ABB
Availability: PreOrder

Product type: PS1/37/25HBP-CR

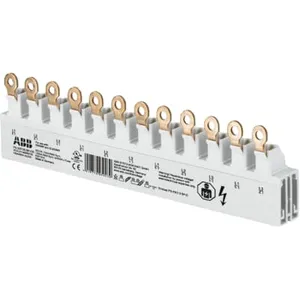

PS 1/37/25 H BP-CR Busbar 1Ph., 37RingLugs, 25qmm

RoHS Compliant

Description

PS 1/37/25 H BP-CR Busbar 1Ph., 37RingLugs, 25qmm PS1/37/25HBP-CR

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDL211489R3725.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.684 KG / psc.
Commodity number	85369010
Country of origin	DE
Dimensions (WxHxD)	0.0193x0.0566x0.975 m
EAN code	4016779950008
Product group	AW
cn8	8536 90 10
color	Grey
pitch	44698.0
eclass	V11.0 : 27371306
etim 7	EC000215 - Phase busbar
etim 8	EC000215 - Phase busbar
unspsc	39121614
standards	UL 489
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2011/65/EU
sub-function	Space for auxiliary contatct
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
accessory type	Busbar
sub-function 2	Branch Protection (UL 489)
weee b2c / b2b	Business To Business
connection type	Pin
number of poles	37
housing material	Light grey, RAL 7035
number of phases	1
options provided	HBP-CR
pollution degree	2
rohs information	https://library.abb.com/d/2CDK400614D0201
mounting position	Any
eplan catalog tree	Electrical engineering / Protection devices / General
product net length	975 mm
rated cross-section	25 mm2
rated frequency (f)	50 / 60 Hz
overvoltage category	III
environmental information	https://library.abb.com/d/DIN EN 60068
rated operational voltage	690 V AC/DCMaximum 480 V
suitable for product class	UL 489 Devices
number of mountable devices	37
number of terminals (nterm)	37
declaration of conformity - ce	https://library.abb.com/d/2CDK400613D2701
rated uninterrupted current (iu)	80 A
data sheet, technical information	https://library.abb.com/d/2CDC446003D0201
width in number of modular spacings	56
rated short-time withstand current low voltage (icw)	10 kA
