ABB

2CDS200922R0001

Product type: S2C-S/H6R

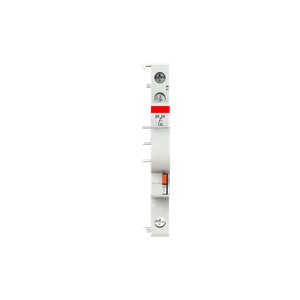

S2C-S/H6R Universal Auxiliary/Signal Con

Datasheet

RoHS Compliant

Description

Choice through a selector between indication of the position of the device’s contacts and signalling of a fault (overcurrent/short-circuit for MCBs and RCBOs, earth fault for RCCBs and RCBOs). Suitable for MCBs S 200 series, SN 201 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 series. S2C-S/H6R

Low Voltage Products and Systems
Modular DIN Rail Products
ABB VY
Busbars and Accessories ABB VY
Accessories ABB VY
Low Voltage Products and Systems
Modular DIN Rail Products
Miniature Circuit Breakers MCBs
Miniature Circuit Breakers MCBs Accessories
Auxiliary / Signal Contacts

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDS200922R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.043 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	0.0088x0.085x0.069 m
EAN code	4016779563819
Product group	AA
cn8	8536 50 80
eclass	V11.0 : 27143502
etim 7	EC001286 - Auxiliary device for distribution board devices
etim 8	EC001286 - Auxiliary device for distribution board devices
unspsc	39121614
function	Signal / Auxiliary Contact
standards	CSA 22.2 No. 235GB/T 14048.5IEC/EN 60947-5-1UL 1077
power loss	0.5 WMaximum 0.5 W
rohs status	Following EU Directive 2011/65/EU
suitable for
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
rohs information	https://library.abb.com/d/2CDK440030D2703
e-number (sweden)	2102501
mounting position	Right
e-number (finland)	3210835
eplan catalog tree	Electrical engineering / Protection devices / General
suitable for product class	Miniature Circuit BreakerResidual Current Device
declaration of conformity - ce	https://library.abb.com/d/2CDK400629D2701
number of auxiliary contacts nc	0
number of auxiliary contacts no	0
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
number of auxiliary contacts co (spdt)	1
