ABB

2CDS200970R0041

Product type: S2C-H0115X

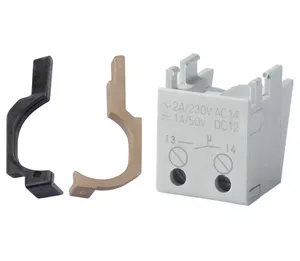

S2C-H01 15X Bottom-fitting auxiliary contact 1NC

Datasheet

RoHS Compliant

Description

Indication of the position of the device’s contacts. S2C-H01 is the opening device and S2C-H10 the closing device. Compared to the S2C-S/H6R, the S2C-H10 entails less cost and many practical benefits. It can be fitted at the bottom of the MCBs and RCDs and is thus much more convenient for retrofitting than the side-mounted device because not all MCBs have to be removed from the rail first. And even when the MCBs affected are connected to a busbar, they do not have to be removed. 50% space can be saved. Suitable for MCBs S200 series, electronic RCBOs DSE200 series. S2C-H0115X

Low Voltage Products and Systems
Modular DIN Rail Products
Miniature Circuit Breakers MCBs
Miniature Circuit Breakers MCBs Accessories
Auxiliary / Signal Contacts

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDS200970R0041.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.01 KG / psc.
Commodity number	85365080
Country of origin	BG
Dimensions (WxHxD)	0.0174x0.0212x0.0231 m
EAN code	4016779065160
Product group	AA
cn8	8536 50 80
eclass	V11.0 : 27143502
etim 7	EC001286 - Auxiliary device for distribution board devices
etim 8	EC001286 - Auxiliary device for distribution board devices
unspsc	39121614
function	Auxiliary Contact
standards	CSA 22.2 No. 235GB/T 14048.5UL 1077
power loss	0.5 WMaximum 0.5 W
rohs status	Following EU Directive 2011/65/EU
suitable for	S200S200MS200MTS200MUCS200PS200SDS-ARC1SD200DS201(2019)
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
accessory type	Auxiliary Contact
weee b2c / b2b	Business To Consumer
rohs information	https://library.abb.com/d/2CDK440032D0203
e-number (sweden)	2100169
mounting position	Bottom
eplan catalog tree	Electrical engineering / Protection devices / General
environmental information	https://library.abb.com/d/2CDK400571D0201
suitable for product class	Miniature Circuit BreakerResidual Current Device
declaration of conformity - ce	https://library.abb.com/d/2CDK400628D2701
number of auxiliary contacts nc	1
number of auxiliary contacts no	0
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
number of auxiliary contacts co (spdt)	0
