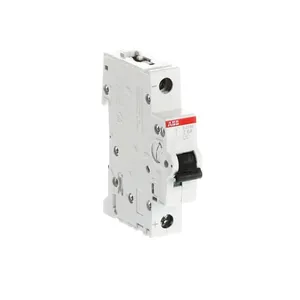

| Weight | 0.117 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.0175x0.085x0.069 m |
| EAN code | 4013614431180 |
| Product group | AA |
| cn8 | 8536 20 10 |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| unspsc | 39121614 |
| remarks | Please note polarity of device |
| standards | CSA 22.2 No. 235IEC/EN 60947-2UL 1077 |
| power loss | 2.6 Wat Rated Operating Conditions per Pole 2.6 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 1 |
| pole net weight | 0.125 kg |
| actuator marking | I / O |
| housing material | Insulation Group I, RAL 7035 |
| options provided | Universal current |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK400583D2704 |
| actuator material | Insulation Group II, Black, Sealable |
| e-number (sweden) | 2100016 |
| installation size | acc. to DIN 43880 1 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| e-number (finland) | 3210302 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC/DC |
| rated current (in) | 6 A |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 10 / 10 mm2Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2 |
| rated frequency (f) | 50 / 60 HzDC |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| certification agency | CSAENIECUL |
| degree of protection | IP20Enclosure with Cover IP40 |
| mechanical endurance | 20000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| power supply connection | Please Note Polarity of Device |
| tripping characteristic | Z |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | 25 in·lb |
| environmental information | https://library.abb.com/d/2CDK400030D201 |
| number of protected poles | 1 |
| rated operational voltage | acc. to IEC 60898-1 230 V ACacc. to IEC 60947-2 253 V ACacc. to IEC 60947-2 220 V DC |
| connecting capacity ul/csa | Busbar 14-8 AWGConductor 14-4 AWG |
| object classification code | F |
| contact position indication | Red ON / Green OFF |
| rated short-circuit capacity | (AC) 10 kA(230 V AC) 10 kA |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 440 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK400583D2704 |
| maximum operating voltage ul/csa | 250 V DC480Y / 277 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC002142D0207 |
| interrupting rating acc. to ul1077 | (110 V DC) 10 kA(220 V AC) 10 kA(250 V DC) 10 kA(253 V AC) 6 kA(480Y / 277 V AC) 10 kA |
| width in number of modular spacings | 1 |
| rated impulse withstand voltage (uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated conditional short-circuit current (inc) | (230 V) 10 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| rated service short-circuit breaking capacity (ics) | (110 V DC) 10 kA(230 V AC) 10 kA |
| rated ultimate short-circuit breaking capacity (icu) | (110 V DC) 20 kA(220 V DC) 10 kA(230 V AC) 10 kA(253 V AC) 10 kA |
