ABB

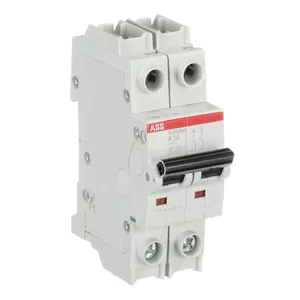

2CDS272437R0217

Product type: S202MR-K1

Sicherungsautomat K-Char., 10kA, 1A, 2P, RTT UL 1077, Ringkabelanschluss

Datasheet

Description

Die Sicherungsautomaten der Baureihe S 200 MR schützen Kabel und Leitungen vor Überlast und Kurzschluss gemäß DIN VDE 0100-430 und DIN VDE 0100-530. Sie erfüllen die Bauvorschriften, DIN VDE 0660-101 bzw. IEC/EN60947-2, UL1077 und CSA 22.2 No 235. Für konstante Verbindung sorgt die unverlierbare Schraube der Anschlussöffnung für M5 Ringkabelschuhe. Das umfangreiche Zubehörsortiment bietet Ihnen alles, was Sie für Ihre Installationsaufgaben benötigen. Jedes Gerät wird vor Auslieferung dreifach intensiven Tests auf Qualität und Leistung unterzogen.

Low Voltage Products and Systems
Modular DIN Rail Products
Miniature Circuit Breakers MCBs

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CDS272437R0217.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.224 KG / psc.
Commodity number	85362010
Country of origin	DE
Dimensions (WxHxD)	0.035x0.1x0.071 m
EAN code	4016779957755
Product group	AA
cn8	8536 20 10
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
unspsc	39121614
standards	CSA 22.2 No. 235IEC/EN 60947-2UL 1077
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	Double Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	2
pollution degree	3
rohs information	https://library.abb.com/d/2CDK400687D2702
eplan catalog tree	Electrical engineering / Protection devices / General
input voltage type	AC
rated current (in)	1 A
built-in depth (t2)	69 mm
connecting capacity	Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2
rated frequency (f)	50 / 60 Hz
certification agency	CSAENIECUL
degree of protection	IP20
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25 ... +55 °C
tripping characteristic	K
number of protected poles	2
rated operational voltage	acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 400 V AC
rated short-circuit capacity	(230 V AC) 10 kA(400 V AC) 10 kA
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 440 V
declaration of conformity - ce	https://library.abb.com/d/2CDK400687D2702
data sheet, technical information	https://library.abb.com/d/No document needed
interrupting rating acc. to ul1077	(480Y / 277 V AC) 10 kA
width in number of modular spacings	2
rated impulse withstand voltage (uimp)	4 kVat 2000 m 5 kVat Sea Level 6.2 kV
rated conditional short-circuit current (inc)	(230 V) 10 kA(400 V) 10 kA
rated service short-circuit breaking capacity (ics)	(400 V AC) 11.2 kA
rated ultimate short-circuit breaking capacity (icu)	(230 V AC) 10 kA(400 V AC) 15 kA
