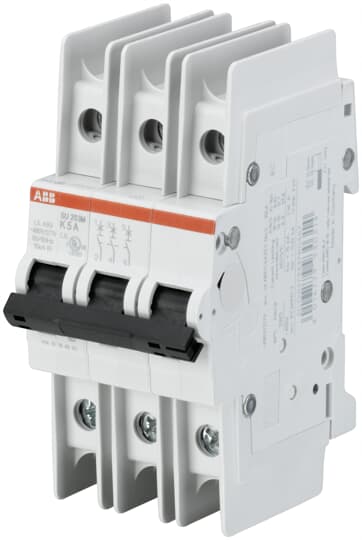

| Weight | 0.366 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.0525x0.111x0.069 m |
| EAN code | 4016779930307 |
| Product group | AB |
| cn8 | 8536 20 10 |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| unspsc | 39121614 |
| standards | CSA 22.2 No. 5IEC/EN 60947-2UL 489 |
| power loss | 5.4 Wat Rated Operating Conditions per Pole 1.8 W |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Double Clamp |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Consumer |
| number of poles | 3 |
| pole net weight | 0.125 kg |
| actuator marking | I / O |
| housing material | Insulation Group I, RAL 7035 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK400595D2705 |
| actuator material | Insulation Group II, Black, Sealable |
| installation size | acc. to DIN 43880 3 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC |
| rated current (in) | 4 A |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 10 / 10 mm2Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2 |
| rated frequency (f) | 50 / 60 HzDC |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| certification agency | CSAENIECUL |
| degree of protection | IP20Enclosure with Cover IP40 |
| electrical endurance | 20000 AC cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| dielectric test voltage | 50/60 Hz, 1 min: 2 kV |
| power supply connection | Arbitrary |
| tripping characteristic | K |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Pozidriv 2 |
| environmental information | https://library.abb.com/d/9AKK107680A9140 |
| eplan function definition | Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6 |
| number of protected poles | 3 |
| rated operational voltage | acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 400 V AC |
| connecting capacity ul/csa | Busbar 18-8 AWGConductor 18-4 AWG |
| contact position indication | Red ON / Green OFF |
| mechanical endurance (nendu) | 20000 cycle |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 440 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK400595D2705 |
| maximum operating voltage ul/csa | 480Y / 277 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC002177D0202 |
| interrupting rating acc. to ul489 | (240 V AC) 10 kA(480Y / 277 V AC) 10 kA |
| reference ambient air temperature | 30 °C |
| rated short-circuit capacity (icn) | (400 V AC) 11.2 kA |
| width in number of modular spacings | 3 |
| rated impulse withstand voltage (uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated conditional short-circuit current (inc) | (400 V) 15 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| rated service short-circuit breaking capacity (ics) | (400 V AC) 11.2 kA |
| rated ultimate short-circuit breaking capacity (icu) | (400 V AC) 15 kA |
