ABB

2CKA006512A0340

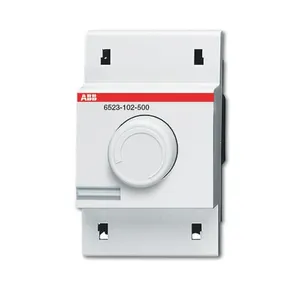

Product type: 6523-102-500

STD-LED-Dimmer DIN-Rail, Drehdimmer, LED bis 100W/VA

Datasheet

Description

Mit Drehbetätigung, Druckfolgewechselschalter und Soft-Rastung. Optimiert für das Dimmen von Retrofit-LED-Leuchtmitteln (LEDi). Für dimmbare Retrofit-LED-Leuchtmittel (LEDi). Für dimmbare Retrofit-LED-Leuchtmittel (LEDi) an konventionellen oder elektronischen Transformatoren Für Glühlampen, 230 V-Halogenglühlampen, Niedervolt-Halogenlampen mit konventionellen oder elektronischen Transformatoren und dimmbare Halogen-Energiesparlampen. Mischlastbetrieb LEDi und herkömmliche Leuchtmittel möglich. Mittels Wahlschalter zwischen Phasen an- und Phasenabschnitt umschaltbar. Geräuscharm durch Einsatz von MOSFET-Transistoren. Kurzschlussfest und überlastsicher (elektronische Sicherung). Mit einstellbarer Minimalhelligkeit. Nennspannung: 230 V~, + 10 % / - 10 % Nennfrequenz: 50 Hz/60 Hz Nennleistung: 2 - 100 W/VA (Retrofit-LED-Lasten). Nennleistung: 10 - 250 W/VA (Nicht-LED-Lasten).

Low Voltage Products and Systems
Switch Assortments
Light / LoadControl
Electronic Rotary / Push Button Dimmer (all Loads incl. LED, DALI)
Rotary Dimmer - DIN Rail

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CKA006512A0340.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.085 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	0.053x0.085x0.073 m
EAN code	4011395212745
Product group	EB
cn8	8536 50 80
eclass	V11.0 : 27144014
etim 7	EC000025 - Dimmer
etim 8	EC000025 - Dimmer
material	Material quality: Thermoplastic (3)Material: Plastic (3)
power watt	2...250 V·A
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
actuator type	Turn/push button
frequency (f)	50...60 Hz
mounting type	Mounted Din Rail Component
product range	Busch-Dimmer®
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0 g
weee b2c / b2b	Business To Consumer
connection type	Screw Clamp
rohs information	https://library.abb.com/d/9AKK104295D8727
e-number (sweden)	1360574
reach declaration	https://library.abb.com/d/2CKA309999E9999
surface finishing	Surface protection: UntreatedSurface finishing: Matt
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated voltage (ur)	207...253 V
number of batteries	0
degree of protection	IP20
ambient air temperature	Operation 0 ... +35 °C
declaration of conformity - ce	https://library.abb.com/d/2CKA100000E1621
data sheet, technical information	https://library.abb.com/d/No document needed
rated control supply voltage (us)	220...240 V
width in number of modular spacings	3
