ABB

2CKA006513A0543

Product type: 6513-102-500

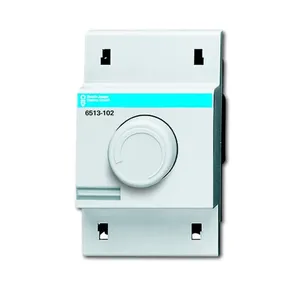

6513-102-500 Electronic Rotary / Push Button Dimmer (all Loads incl. LED, DALI)

Datasheet

Description

With rotary control, soft-catch and with trailing edge control. For incandescent lamps, 230 V tungsten halogen lamps and low-voltage halogen lamps with electronic transformers. Low-noise, short-circuit-proof, overload-protected.

Low Voltage Products and Systems
Switch Assortments
Light / LoadControl
Electronic Rotary / Push Button Dimmer (all Loads incl. LED, DALI)
Rotary Dimmer - DIN Rail

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CKA006513A0543.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.09 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	92x58x78 mm
EAN code	4016779033008
Product group	EB
cn8	8536 50 80
eclass	V11.0 : 27144014
etim 7	EC000025 - Dimmer
etim 8	EC000025 - Dimmer
material	Material quality: Thermoplastic (3)Material: Plastic (3)
load type	Capacitive load
power watt	40...420 V·A
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
actuator type	Turn/push button
frequency (f)	50...50 Hz
mounting type	Mounted Din Rail Component
product range	Flush-mounted installation boxes and inserts
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0 g
weee b2c / b2b	Business To Consumer
connection type	Screw Clamp
rohs information	https://library.abb.com/d/9AKK104295D8727
reach declaration	https://library.abb.com/d/2CKA309999E9999
surface finishing	Surface protection: UntreatedSurface finishing: Matt
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated voltage (ur)	230 V
number of batteries	0
rated frequency (f)	50 Hz
auxiliary voltage ac/dc	230 V AC/DC
declaration of conformity - ce	https://library.abb.com/d/2CKA100000E1624
data sheet, technical information	https://library.abb.com/d/No document needed
rated control supply voltage (us)	220...240 V
width in number of modular spacings	3
