ABB

2CKA006550A0032

Product type: STD-MTS, 6550

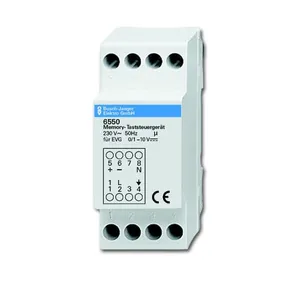

STD-MTS, 6550 Electronic Rotary / Push Button Dimmer (all Loads incl. LED, DALI)

Datasheet

Description

For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC. For LED control via control gears Operation only possible via conventional push button (2020 US/2021/6 UK).

Low Voltage Products and Systems
Switch Assortments
Light / LoadControl
Electronic Rotary / Push Button Dimmer (all Loads incl. LED, DALI)
Rotary Dimmer - DIN Rail

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CKA006550A0032.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.104 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	92x58x78 mm
EAN code	4016779270700
Product group	EB
cn8	8536 50 80
eclass	V11.0 : 27144014
etim 7	EC000025 - Dimmer
etim 8	EC000025 - Dimmer
material	Material quality: AluminiumMaterial: Metal
load type	Electronic ballast 1-10 V
power watt	0...700 V·A
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
actuator type	Push button
frequency (f)	50...50 Hz
mounting type	Mounted Din Rail Component
product range	Flush-mounted installation boxes and inserts
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0 g
weee b2c / b2b	Business To Consumer
connection type	Screw Clamp
rohs information	https://library.abb.com/d/9AKK104295D8727
reach declaration	https://library.abb.com/d/2CKA309999E9999
surface finishing	Surface protection: UntreatedSurface finishing: Matt
type of fastening	Snapper Mounting
eplan catalog tree	Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
rated voltage (ur)	230 V
number of batteries	0
rated frequency (f)	50 Hz
auxiliary voltage ac/dc	230 V AC/DC
declaration of conformity - ce	https://library.abb.com/d/2CKA100000E1672
data sheet, technical information	https://library.abb.com/d/No document needed
rated control supply voltage (us)	220...240 V
width in number of modular spacings	2
