ABB

2CMA101291R1000

Name: 2CMA101291R1000
Brand: ABB
Availability: PreOrder

Product type: 216ERU6W

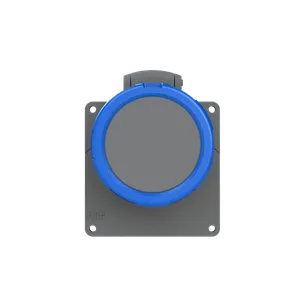

216ERU6W Panel mounted socket

Description

Panel mounted socket outlet, 2P+E, 16A, 200 ... 250 V Clock Position Of Grounding Contact 6 hour Color code Blue

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA101291R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	85x103x0.087 mm
EAN code	7392696012911
Product group	SI
color	Blue
eclass	27440504
unspsc	39120000
function	Panel mounted socket
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
frequency (f)	50 Hz60 Hz
mounting type	Unified straight flange
cable diameter	6 ... 13 mm
cb certificate	https://library.abb.com/d/2CHC660168X0201
mounting holes	75x75
order multiple	10 piece
connection type	Screw
number of poles	3
protection type	Watertight
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (sweden)	E2417686
product main type	ERU
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1616293
tightening torque	WireClamp0.8 N·m
e-number (finland)	2420234
rated current (in)	16 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	1 ... 2.5 mm2
invoice description	Ind. P&S#216ERU6W
rated frequency (f)	50...60 Hz
degree of protection	IP67
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
