ABB

2CMA104798R1000

Name: 2CMA104798R1000
Brand: ABB
Availability: PreOrder

Product type: ABB430C5E

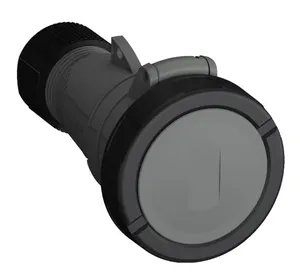

ABB430C5E Industrial connector

Description

IEC Connector for 30A and 600V AC 3P4W, UL/CSA approved and CE compliant

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA104798R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.373 KG / psc.
Commodity number
Country of origin	CZ
Dimensions (WxHxD)	91x91x0 mm
EAN code	7392696047982
Product group	SI
color	Black
eclass	27440509
unspsc	39121413
function	Connector
standards	UL 1682, 1686 / CSA C22.2 No. 182.1-13
wire size	12 ... 10 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial connector
frequency (f)	50 Hz60 Hz
order multiple	1 piece
ul certificate	https://library.abb.com/d/E163435-19950105
connection type	Screw
number of poles	4
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0022
product main type	EC
reach declaration	https://library.abb.com/d/2CMC700005D0022
tightening torque	WireClamp1.2 N·m
rated current (in)	30 A
rated voltage (ur)	600 ... 690 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 6 mm2
installation manual	https://library.abb.com/d/2CMC700041M0006
invoice description	Ind. P&S#ABB430C5E
cable entry position	Swivel
degree of protection	IP67
additional information	3P+E
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0022
