ABB

2CMA163257R1000

Name: 2CMA163257R1000
Brand: ABB
Availability: PreOrder

Product type: 216MVS6WH

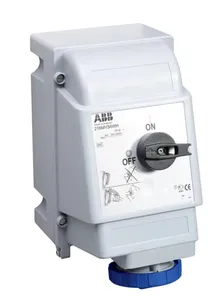

216MVS6WH Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet, vertical, Heavy Duty, earthing sleeve position 6h, rated current 16A, IP67 watertight, 2-poles+earth

Low Voltage Products and Systems
Industrial Plugs and Sockets
Critical & Safe
Switched Interlocked Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA163257R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.83 KG / psc.
Commodity number	85365015
Country of origin	CZ
Dimensions (WxHxD)	160x205x0.307 mm
EAN code	7392696632577
Product group	SI
scip	8f2a459d-ae21-4edc-8431-c56a61d9e5ef Czech Republic (CZ)
color	Blue
eclass	27440510
unspsc	39120000
function	Switched Interlocked Socket outlet, vertical, Heavy Duty
standards	IEC 60309-1, -2, -4
wire size	14 ... 12 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Switched Interlocked Socket Outlet
suitable for	Switched Interlocked Socket Outlets, Vertical
frequency (f)	50 Hz60 Hz
mounting type	Vertical
cable diameter	6 ... 13 mm
mounting holes	79.5x79.5
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Switched Interlocked
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417133
e-number (sweden)	E2417133
product main type	CMVS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/2CHC660004X0203
tightening torque	WireClamp0.8 N·m
e-number (finland)	2417133
rated current (in)	16 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
installation manual	https://library.abb.com/d/2CMC000029M0001
invoice description	IND. P&S#216MVS6WH
mechanical drawings	https://library.abb.com/d/9AKK107991A3924
cable entry position	Knock-out on Top and drill marks down
degree of protection	IP67IP69
additional information	2P+E
cable outlets per side	1xØ40+1xØ50 mm on top and drill marks on bottom
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
