ABB

2CMA166494R1000

Name: 2CMA166494R1000
Brand: ABB
Availability: PreOrder

Product type: 416P6W

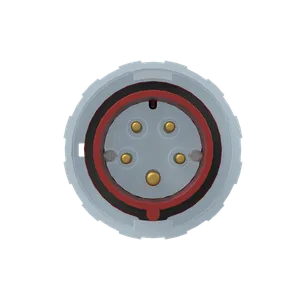

416P6W Industrial Plug

Description

Plug, earthing sleeve position 6h, rated current 16A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA166494R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.26 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	86x86x0.146 mm
EAN code	7392696664943
Product group	SI
color	Red
eclass	27440509
unspsc	39121402
function	Plug
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Plug
suitable for	Plugs
frequency (f)	50 Hz60 Hz
cable diameter	13 ... 17 mm
order multiple	1 piece
connection type	Screw
number of poles	5
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416254
e-number (sweden)	E2416254
product main type	TP
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp0.8 N·m
e-number (finland)	2421636
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1 ... 2.5 mm2
invoice description	Ind. P&S#416P6W
cable entry position	Cable entry compression gland
degree of protection	IP67IP69
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
