ABB

2CMA166516R1000

Name: 2CMA166516R1000
Brand: ABB
Availability: PreOrder

Product type: 332P1W

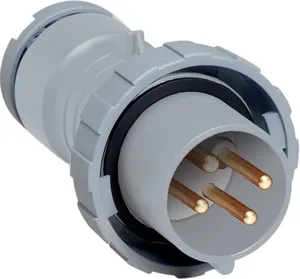

332P1W Industrial Plug

Description

Plug, earthing sleeve position 1h, rated current 32A, IP67 watertight, 3-poles+earth

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA166516R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	94x94x0.147 mm
EAN code	7392696665162
Product group	SI
color	Grey
eclass	27440509
unspsc	39120000
function	Plug
standards	IEC 60309-1, -2
wire size	12 ... 10 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Plug
suitable for	Plugs
frequency (f)	AC Hz
cable diameter	13 ... 21.5 mm
order multiple	10 piece
connection type	Screw
number of poles	4
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416273
e-number (sweden)	E2416273
product main type	TP
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp1.2 N·m
e-number (finland)	2416273
rated current (in)	32 A
rated voltage (ur)	Optional voltage V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 6 mm2
invoice description	Ind. P&S#332P1W
cable entry position	Cable entry compression gland
degree of protection	IP67IP69
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
