2CMA166752R1000
ABB

2CMA166752R1000

Product type: 363P6

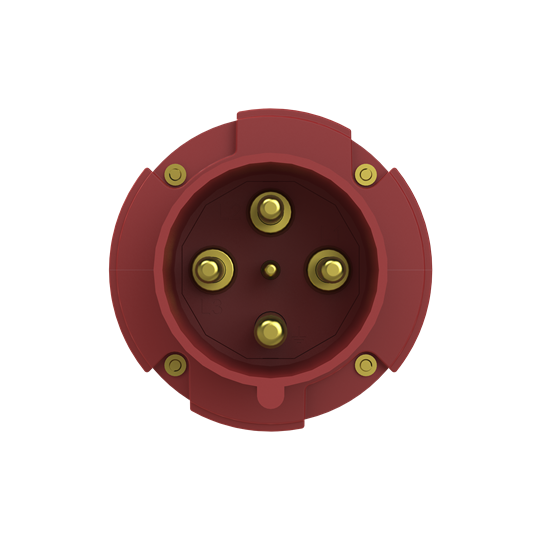

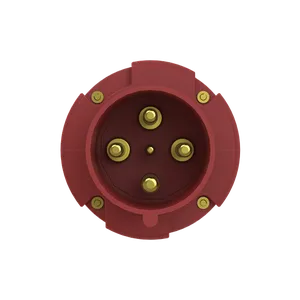

363P6 Industrial Plug

Description

Plug, earthing sleeve position 6h, rated current 63A, IP44 splashproof, 3-poles+earth, frequency 50-60 Hz, color code Red
Read More
  • Low Voltage Products and Systems
  • Industrial Plugs and Sockets
  • Tough & Safe
  • Plugs
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.64 KG / psc.
Commodity number85366990
Country of originCZ
Dimensions (WxHxD)103x103x0.215 mm
EAN code7392696667524
Product groupSI
scip 142e4be7-9288-4b10-935a-76430342c6ba Czech Republic (CZ)
color Red
eclass 27440509
unspsc 39121402
function Plug
standards IEC 60309-1, -2
wire size 8 ... 4 AWG
ral number RAL 7001 - Silver Grey
rohs status Following EU Directive 2011/65/EU
product name Industrial Plug
suitable for Plugs
frequency (f) 50 Hz60 Hz
cable diameter 17 ... 35 mm
order multiple 1 piece
connection type Screw
number of poles 4
protection type Splashproof
housing material Thermoplastic (PBT)
rohs information https://library.abb.com/d/2CMC700005D0001
e-number (norway) 1565173
e-number (sweden) E2416226
product main type TP
reach declaration https://library.abb.com/d/2CMC700005D0001
tightening torque WireClamp3.5 N·m
e-number (finland) 2421623
rated current (in) 63 A
rated voltage (ur) 380 ... 415 V
ambient temperature -25 ... 40 °C
cable cross-section 4 ... 16 mm2
installation manual https://library.abb.com/d/2CMC000040M0001
invoice description Ind. P&S#363P6
cable entry position Cable entry, membrane
degree of protection IP44
additional information 3P+E
recommended screw driver PH2
environmental information https://library.abb.com/d/2CMC000056M0000
suitable for product class IEC Industrial Plugs and Sockets
replacement product id (new) /products/en/2CMA106085R1000
declaration of conformity - ce https://library.abb.com/d/2CMC700005D0001
