ABB

2CMA166842R1000

Name: 2CMA166842R1000
Brand: ABB
Availability: PreOrder

Product type: 263C9

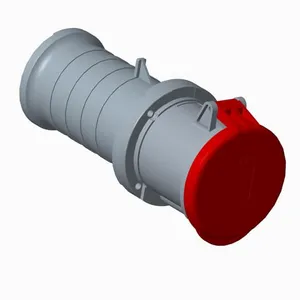

263C9 Industrial Connector

Description

Connector, earthing sleeve position 9h, rated current 63A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Red

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA166842R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.8 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	98x112x0.224 mm
EAN code	7392696668422
Product group	SI
color	Red
eclass	27440509
unspsc	39121406
function	Connector
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Connector
suitable for	Connectors
frequency (f)	50 Hz60 Hz
cable diameter	17 ... 35 mm
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416346
e-number (sweden)	2416346
product main type	TC
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614200
tightening torque	WireClamp3.5 N·m
e-number (finland)	2421823
rated current (in)	63 A
rated voltage (ur)	380 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	4 ... 16 mm2
installation manual	https://library.abb.com/d/2CMC000038M0001
invoice description	Ind. P&S#263C9
cable entry position	Cable entry, membrane
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
replacement product id (new)	/products/en/2CMA106062R1000
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
