ABB

2CMA166850R1000

Name: 2CMA166850R1000
Brand: ABB
Availability: PreOrder

Product type: 363C6

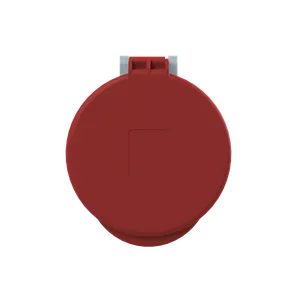

363C6 Industrial Connector

Description

Connector, earthing sleeve position 6h, rated current 63A, IP44 splashproof, 3-poles+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Tough & Safe
Connectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA166850R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.8 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	98x112x0.224 mm
EAN code	7392696668507
Product group	SI
scip	4de7d87b-7ff4-4d59-baa2-2af42b4201b4 Czech Republic (CZ)
color	Red
eclass	27440509
unspsc	39121406
function	Connector
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Connector
suitable for	Connectors
frequency (f)	50 Hz60 Hz
cable diameter	17 ... 35 mm
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Splashproof
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1565373
e-number (sweden)	E2416350
product main type	TC
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614200
tightening torque	WireClamp3.5 N·m
e-number (finland)	2421753
rated current (in)	63 A
rated voltage (ur)	380 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	4 ... 16 mm2
installation manual	https://library.abb.com/d/2CMC000038M0001
invoice description	Ind. P&S#363C6
mechanical drawings	https://library.abb.com/d/9AKK107991A3966
cable entry position	Cable entry, membrane
degree of protection	IP44
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
replacement product id (new)	/products/en/2CMA106066R1000
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
