ABB

2CMA167494R1000

Name: 2CMA167494R1000
Brand: ABB
Availability: PreOrder

Product type: 363RS4

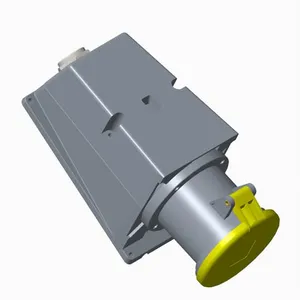

363RS4 Wall mounted socket

Description

Surface socket-outlet, earthing sleeve position 4h, rated current 63A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Yellow

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA167494R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.99 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	107x254x0.254 mm
EAN code	7392696674942
Product group	SI
color	Yellow
eclass	27440510
unspsc	39121406
function	Surface socket outlet
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted socket
suitable for	Surface Socket Outlets
frequency (f)	50 Hz60 Hz
mounting holes	170x95
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Splashproof
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416511
e-number (sweden)	2416511
product main type	TRS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614199
tightening torque	WireClamp3.5 N·m
e-number (finland)	2420183
rated current (in)	63 A
rated voltage (ur)	100 ... 130 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000038M0001
invoice description	Ind. P&S#363RS4
mechanical drawings	https://library.abb.com/d/9AKK107680A0707
cable entry position	Cable entry, M32, alternative rear knock-out cable entry
degree of protection	IP44
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
